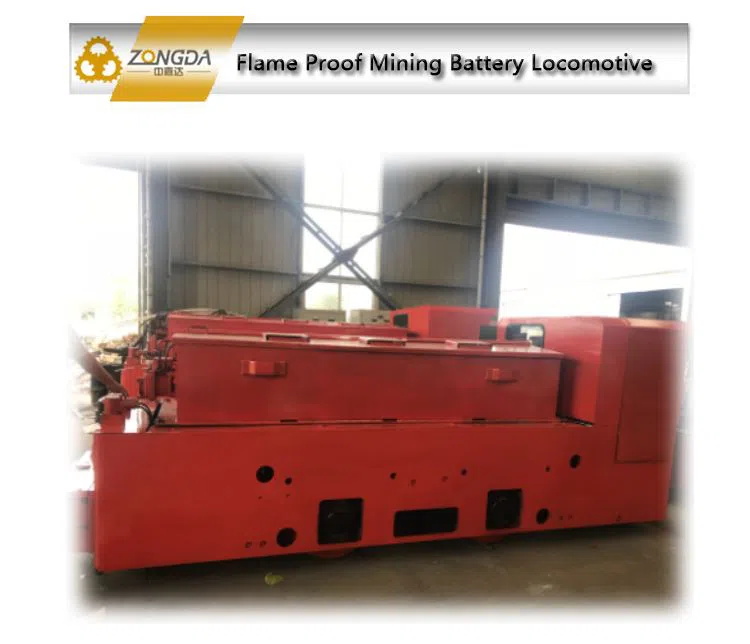

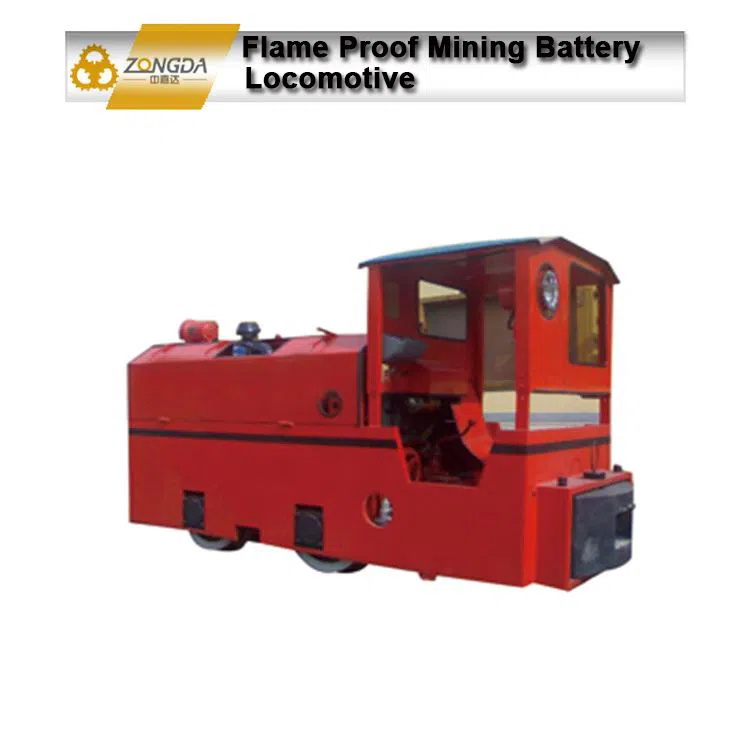

12t Flame Proof Mining Battery Locomotive, the speed regulation mode is divided into chopper speed regulation, mechanical braking, two-stage gear gearbox drive, rubber spring damping, voltage of 192v.
12t Flame Proof Mining Battery Locomotive, the speed regulation mode is divided into chopper speed regulation, mechanical braking, two-stage gear gearbox drive, rubber spring damping, voltage of 192v.
Our Underground Flameproof Shield Haulers, Underground Concrete Spraying Truck, Flameproof Underground Loader are qualified products in line with market standards. We insist on technological innovation and quality first in order to provide customers with an efficient, high-quality and accurate solution with high-tech products and a complete service system. Focus on customers’ demand could be the source of corporation survival and advancement, We adhere to honesty and great faith operating attitude, looking ahead on your coming!
Model No: CTY12/610/GB192
Technical Data of 12t Flame Proof Mining Battery Locomotive
12t Flame Proof Mining Battery Locomotive, the speed regulation mode is divided into chopper speed regulation, mechanical braking, two-stage gear gearbox drive, rubber spring damping, voltage of 192v. Its features: large traction, good acceleration performance, easy operation, simple maintenance, stable operation.
| Adhesive Weight | t | 12 |
| Gauge | mm | 610 |
| Rated Voltage | v | 192 |
| Hour Rated Traction Force | kN | 16.46 |
| Hour Rated Speed | Km/h | 8.7 |
| Electric Motor and Power | kw | 22*2 |
| Battery | D560KT | 96 pcs |
| Wheel Base | mm | 1180 |
| Min. Radius of Curvature | m | 7 |
| Dia. Of Wheel | mm | 680 |
| Control Type | Chopper Control | |
| Brake Type | Mechanical Brake or Pneumatic Brake | |
| Drive Type | Gearbox Two Stage Drive | |
| Traction Height | mm | 320， 430 |
| Outer Dimension | mm | L: 5100mm W: 1080mm H:1660mm |
Along with providing you with a superior quality Mining Cty2.5/7g (B) 2.5ton Battery Locomotive with 762mm Track Gauge with advanced technology, we also furnish you with customized services according to your needs. We continue to promote the transformation of sales, and experiment with multi-channel marketing models. In this process, our quality has reached the world leading level, so that our customers and potential customers are satisfied is our unremitting pursuit.
QINGDAO ZONGDA MACHINERY CO., LTD is a professional manufacture focusing on research and development, production, sale and service of underground mining machinery, a solution supplier and a mining project contractor in China with strong comprehensive strength and rich experience in mining industry.
We have more than 30 professional and experienced mining experts and engineers and 200 staff for R&D, Production, QC, After Sales Technical Support and etc.
We have fulfilled our commitment to turn knowledge into value by delivering a comprehensive range of integrated equipment and services that cost-effectively transform ore bodies into high grade mineral products for customers.
A: We produce underground mining vehicles and spare parts for metal mines.
A: Yes.
A: Our quotations usually under CIF terms include Freight and Insurance but no Tariffs.
A: 1 or 2 months usually. Yes and there are stock available sometime.
A: Our forwarder partner will arrange the proper transportation solution and can arrange the door-to-door service as well.
A: We have special and detailed warranty policy.
A: Yes.
A: TT Bank Transfer is preferred.
A: 1 to 2 months usually.
A: Yes, but only LC at sight.
A: We have both local and online technical after-salves service provided.
Depending on strong technical capability and rich experience, ZONGDA provides the EPC service to the domestic and international clients and has abundant EPC project experience in China.
