Model No: CJY3/6,7,9G
Technical Data

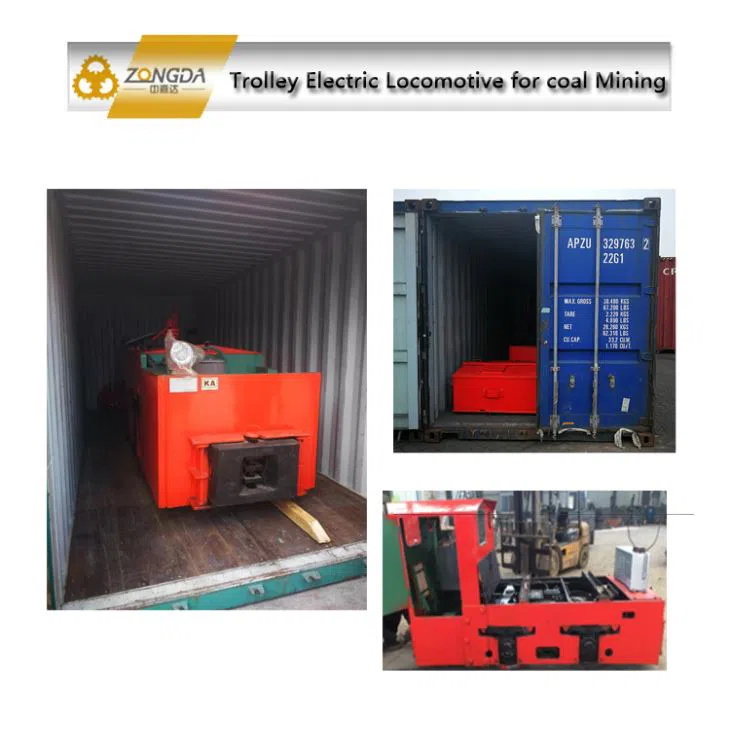

3t Trolley Electric Locomotive for coal Mining adopts IGBT speed regulation, with voltage 250v, and mechanical and electric brake system. Its features: Stable start, high traction force, stable and flexible operation, running mechanic adopts conic and spur gears two stage transmission, with longer life and high efficiency. The Functions: Timing delayed soft start and protection system for under voltage, over voltage and over current. Lamp of locos with Auto switch of red and white lamp and operation interlocking.
| Adhesive Weight | t | 3 |
| Gauge | mm | 600/762/900 |
| Rated Voltage | v | 250 |
| Hour Rated Traction Force | kN | 6.1/5.79 |
| Hour Rated Speed | Km/h | 10.6/7.5 |
| Electric Motor and Power | kw | 1*12 / 2*6.5 |
| Wheel Base | mm | 816/850 |
| Min. Radius of Curvature | m | 5.7/6 |
| Dia. Of Wheel | mm | 650/520 |
| Control Type | Resistance Control or Chopper Control | |
| Brake Type | Mechanical Brake | |
| Drive Type | One or Two Stage Gear Drive | |
| Pantograph Collector | Customized | |
| Outer Dimension | mm | L: 2960/2750 W: 920/1082/1220 H:1550 |
QINGDAO ZONGDA MACHINERY CO., LTD is a professional manufacture focusing on research and development, production, sale and service of underground mining machinery, a solution supplier and a mining project contractor in China with strong comprehensive strength and rich experience in mining industry.
We have more than 30 professional and experienced mining experts and engineers and 200 staff for R&D, Production, QC, After Sales Technical Support and etc.
We have fulfilled our commitment to turn knowledge into value by delivering a comprehensive range of integrated equipment and services that cost-effectively transform ore bodies into high grade mineral products for customers.
A: We produce underground mining vehicles and spare parts for metal mines.
A: Yes.
A: Our quotations usually under CIF terms include Freight and Insurance but no Tariffs.
A: 1 or 2 months usually. Yes and there are stock available sometime.
A: Our forwarder partner will arrange the proper transportation solution and can arrange the door-to-door service as well.
A: We have special and detailed warranty policy.
A: Yes.
A: TT Bank Transfer is preferred.
A: 1 to 2 months usually.
A: Yes, but only LC at sight.
A: We have both local and online technical after-salves service provided.
Depending on strong technical capability and rich experience, ZONGDA provides the EPC service to the domestic and international clients and has abundant EPC project experience in China.
