Underground Flameproof Shield Haulers

Dana power transmission system, four-wheel drive of front and rear axle, with anti-skid self-locking differential, meeting the harsh working conditions;

Underground Flameproof Shield Haulers

Dana power transmission system, four-wheel drive of front and rear axle, with anti-skid self-locking differential, meeting the harsh working conditions;

Product Details

Underground flameproof shield haulers series includes wc55e (a), wc40e (a) and wc28e;

★ Dana power transmission system, four-wheel drive of front and rear axle, with anti-skid self-locking differential, meeting the harsh working conditions;

★ key hydraulic components adopt imported brands with superior performance;

★ the hydraulic oil cools the wheel brake forcibly, so that the service life of the brake is longer, and the brake is safe and reliable;

★ high power engine, strong power, safe and reliable.

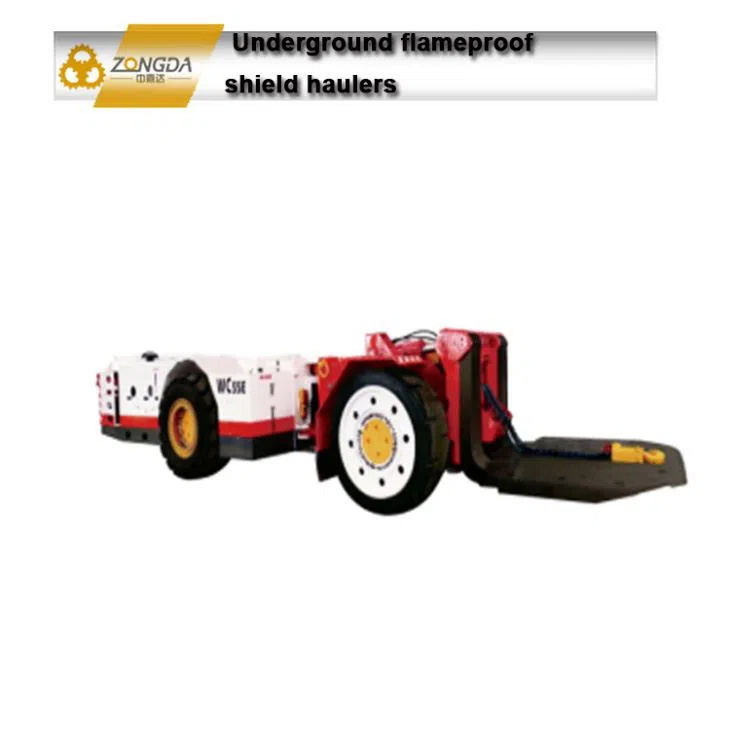

WC28e (a) Underground flameproof shield haulers

Options Specifications
Dimensions(L*W*H)(mm) 9422×2250×1992
Rated bearing capacity(kg) 28000
No-load weight(kg) 28600
No-load speed(km/h) 24
Climbing capacity (longitudinal / transverse)(°) 14/7.5
Driving mode 4×4 All wheel drive
Braking mode Oil immersed wet brake, spring brake, hydraulic release
Turning radius (inside / outside)(mm) 3500/6400
Minimum ground clearance(mm) 320
Rated power(KW) 180
Maximum traction(KN) 220
Maximum non detachable size(mm) 4860×2200×1200
braking distance(m) ≤8
Starting mode Gas starting
Adapt to ambient temperature(℃) -20~40
Emission index Conforming to the third emission of non road countries(GB20891-2014)

Related Products
350A6755 拷贝
ZDL614 Underground Loader
ZDL201 Underground Loader 0.6m³Bucket Volume with 1.2 Ton Tramming Capacity
ZDL 215C Underground Loader 0.75 m³Bucket Volume with 1.5 Ton Tramming Capacity

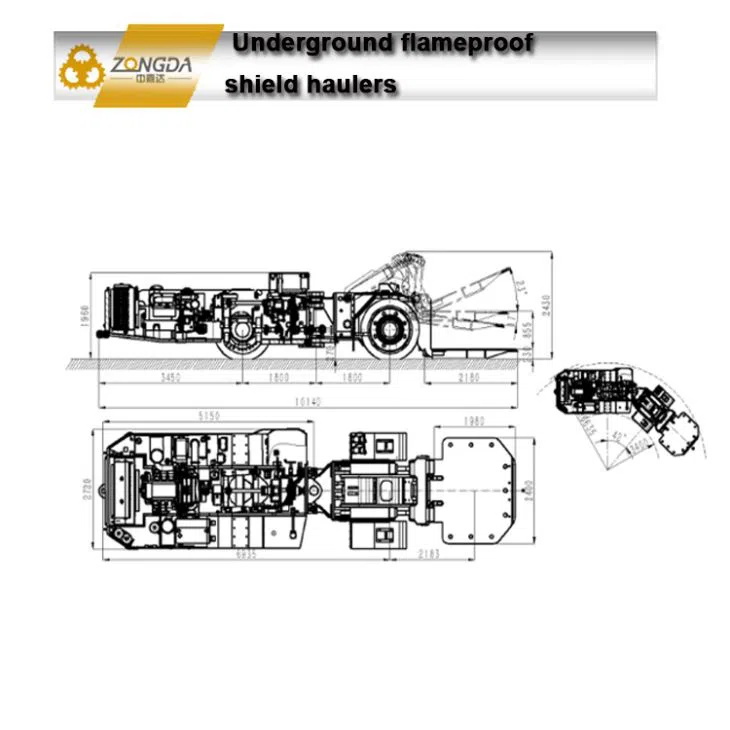

Technical drawing And Dimensions
