TECHNICAL SPECIFICATION

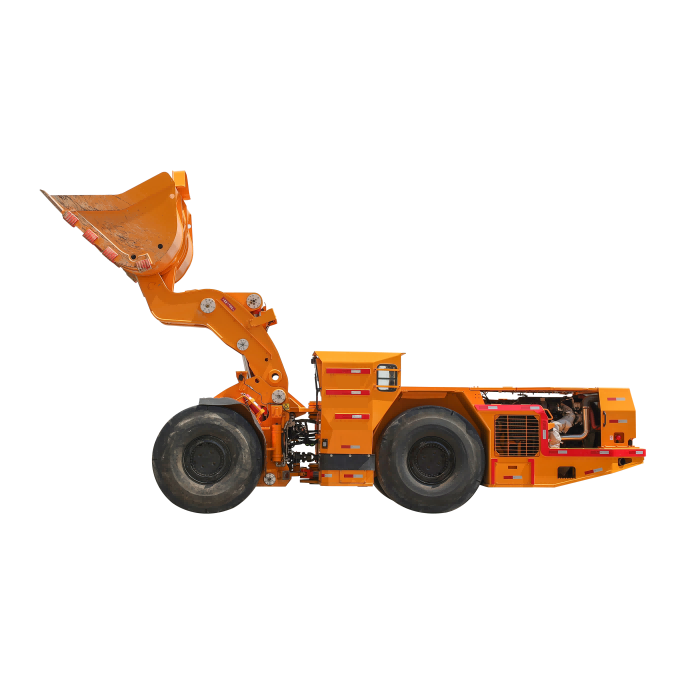

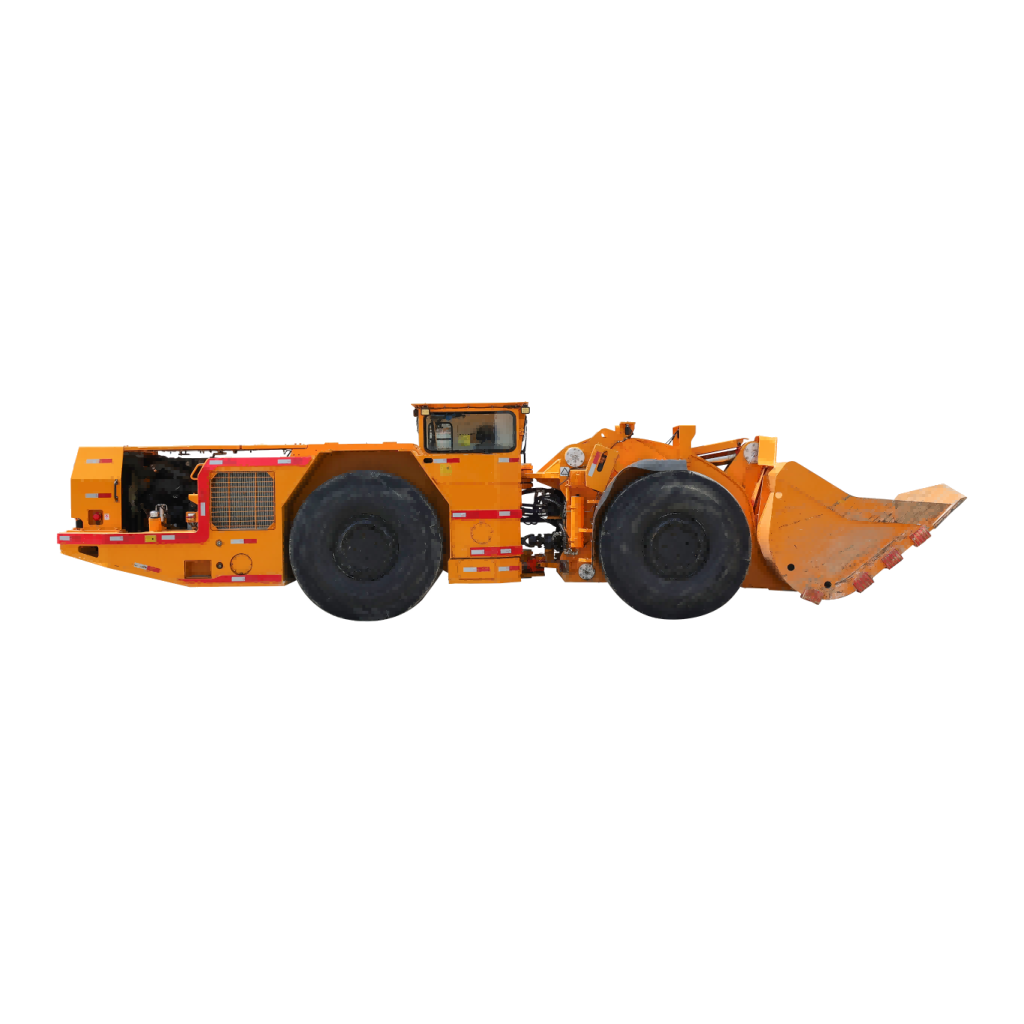

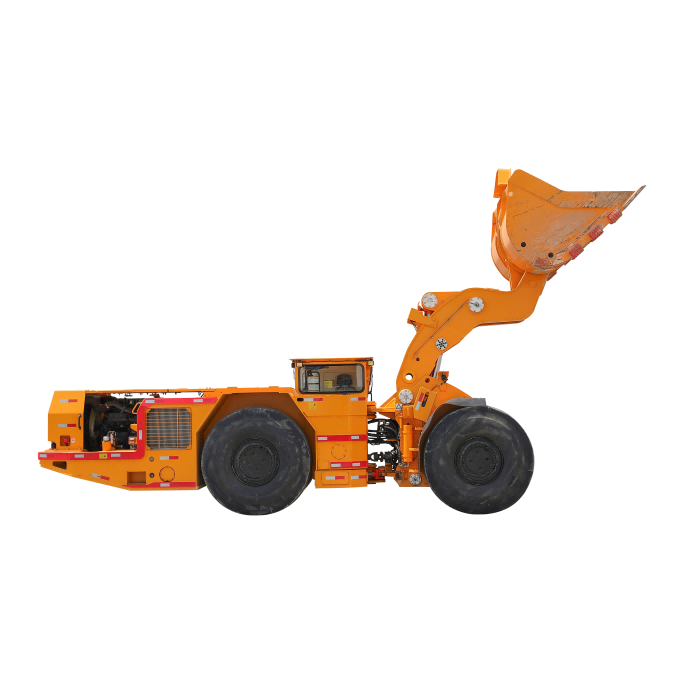

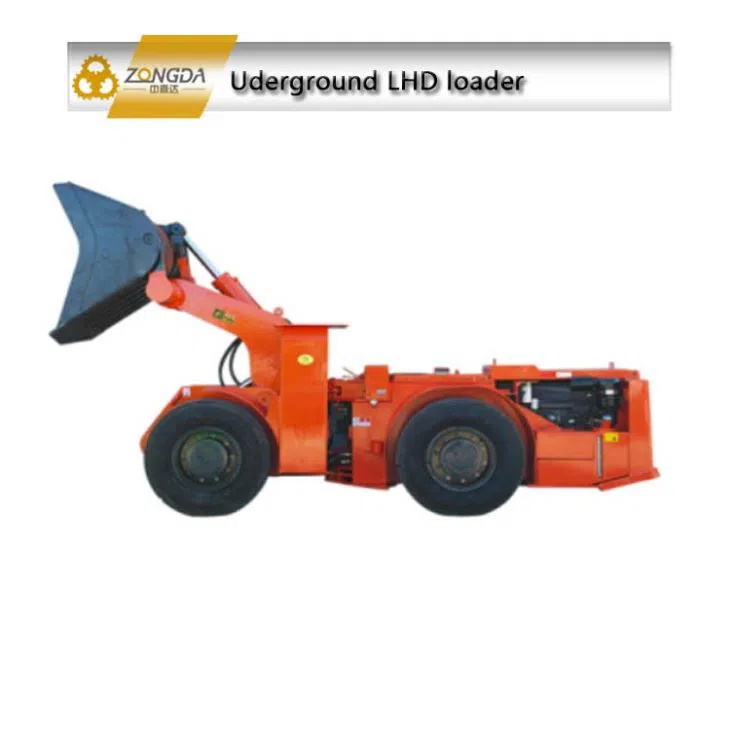

ZDL307 DIESEL UNDERGROUND LOADER

ZDL307 Diesel Underground Loader :Trackless loading and short distance transportation equipment

The ZDL307 Diesel Underground Loader mainly used in conjunction with mining trucks in underground excavation and mining operations. Shovel loading of ore and various materials can greatly improve operational efficiency and is an important equipment for achieving trackless mining.

1. Technical Characteristics:

• Power System: Equipped with a Deutz air-cooled engine.
• Transmission: Utilizes a gearbox and torque converter.
• Braking System:
  • Driving Brake: Wet multi-disc spring brake with hydraulic release.
  • Parking Brake: Spring brake on the drive axle.
• Frame: Centrally hinged structure for improved adhesion performance.
• Steering: Hydraulic power steering with a single steering cylinder.
  2. Performance Highlights:
• Diesel Engine: Powered by a reliable diesel engine.
• Four-Wheel Drive: Ensures traction and maneuverability.
• Lateral Driving: Allows flexibility in tight spaces.
• Central Articulated Hydraulic Steering: Large steering angle for precise control.
• Small Turning Radius: Ideal for medium section tunnel operations.
  3. Safety Measures:
• Safety Gear: Operators must wear safety helmets, carry self-rescue devices, and use mining lamps when entering the well.
• Regular Maintenance: Regular inspections and prompt addressing of hidden dangers.
• No Maintenance During Operation: Strictly prohibited to conduct maintenance while the machine is running.
• Safety During Welding/Cutting: Confirm absence of flammable or explosive materials before maintenance.
• Exhaust Pipe Precautions: Avoid physical contact with the hot exhaust pipe.
• Hydraulic System Maintenance: Pressure must be relieved before starting any repairs.

Usage Conditions for the ZDL307 Diesel Underground Loader

1. Tunnel Specifications:

• Suitable for tunnels with a cross-sectional size of 4meters (height) ×4 meters (width) and above.
• Requires a firm top plate.
• Minimum turning radius of ≥ 9meters on the outside.
• Road slope should be ≤ 14°.
• Adequate ventilation and drainagein the workplace.
  2. Environmental Factors:
• Ambient temperature within the tunnel: -5°C to 40°C.
• Maximum relative humidity (at 25°C): Not more than 85%.
• Altitude of usage location: Not exceeding 1000 meters.
• In high-altitude areas (above 1000 meters), power reductionis required for operation.
  3. Fuel Requirements:
• The sulfur content of the fuel used in this machine must not exceed 0.2%.
  4. Safety Precautions:
• Strictly prohibitedin places with flammable and explosive gases (such as gas and coal dust).

 Technical specifications

ZDL307 Diesel Underground Loader:Technical specifications

1. Technical parameters

• Rated load capacity：7 t (Full load)
• Bucket capacity (stacking)：3 m³
• Maximum driving speed

 Level I：5.8 km/h

Level II：9.7 km/h

Level III: 15.1 km/h

Level IV: 20.5 km/h

• Working hours：16 s
• Maximum climbing ability (heavy load):   25%
• Maximum traction force:160 kN
• Turning radius: Inner side 2800 mm    Outside6000 mm
• Maximum machine height during unloading: 1950 mm
• Maximum unloading angle: 40°
• Steering angle: ±40°
• Ground clearance：280 mm
• Overall dimensions ：9250  mm×2600 mm×2250 mm
• Operating weight of the entire machine:19.5 t

2. Engine

• Engine:DEUTZ BF6M1013EC water-cooled low pollution engine
• Rated power/rated speed: 165kW/2200 r/min
• Starting method: Electric starting
• Exhaust gas purification method: catalytic purification method
• Throttle control: Williams electronic throttle controller

3. Transmission system

• Transmission model: DANA R32000 series automatic shift transmission;
• Torque converter model: DANA C270
• Drive axle model: DANA 16D
• Final drive ratio: 6
• Wheel edge speed ratio: 4.46
• Total speed ratio: 26.77
• Tire: 17.5-25R smooth inflated steel wire tire

4. Braking system

• Brake pump: HPT1-16
• Displacement: 16ml/r
• Maximum pressure of braking system: 19 MPa
• Service brake: Wet multi disc spring brake brake valve model: MICO
• Parking brake: spring brake on the drive axle, spring brake, hydraulic release brake
• Parking brake valve model: RA3/3/2/G-3

5. Steering system

• Type: Central hinge, hydraulic steering
• Steering work pump: DANFOSS ERL100 (shared by work) displacement: 100ml/r
• Maximum pressure of steering system: 14 MPa
• Steering cylinder diameter/rod diameter × Number of cylinders: φ  100/ φ 55 mm × two
• Steering multi way valve: PVG100

6. Working System

• Working pump: DANFOSS ERL100
• Working directional valve: PVG100
• Lift cylinder diameter/rod diameter × Number of cylinders: φ  140/ φ 80 mm × 2
• Bucket cylinder diameter/rod diameter × Number of cylinders: φ 200/ φ 110 mm × 1
• Maximum pressure of working system: 25MPa

7. Electrical System

• System voltage: 24V DC
• Starting motor voltage/power: 24V/6kW
• The wiring harness is made of high-temperature resistant wires, and high-quality corrugated pipes are used around the wiring harness
• Lighting: 2 front headlights, 2 × 75W, 24V

2 rear headlights, 2 × 75W, 24V

2 cab ceiling lights, 24 V

8. Tank volume

• Hydraulic oil tank: 300 L
• Fuel tank: 200 L
• Transmission:36 L
• Drive axle main transmission part: 17L × 2
• Drive axle wheel reduction part: 3.5 L × 4
• Engine lubricating oil:28L
