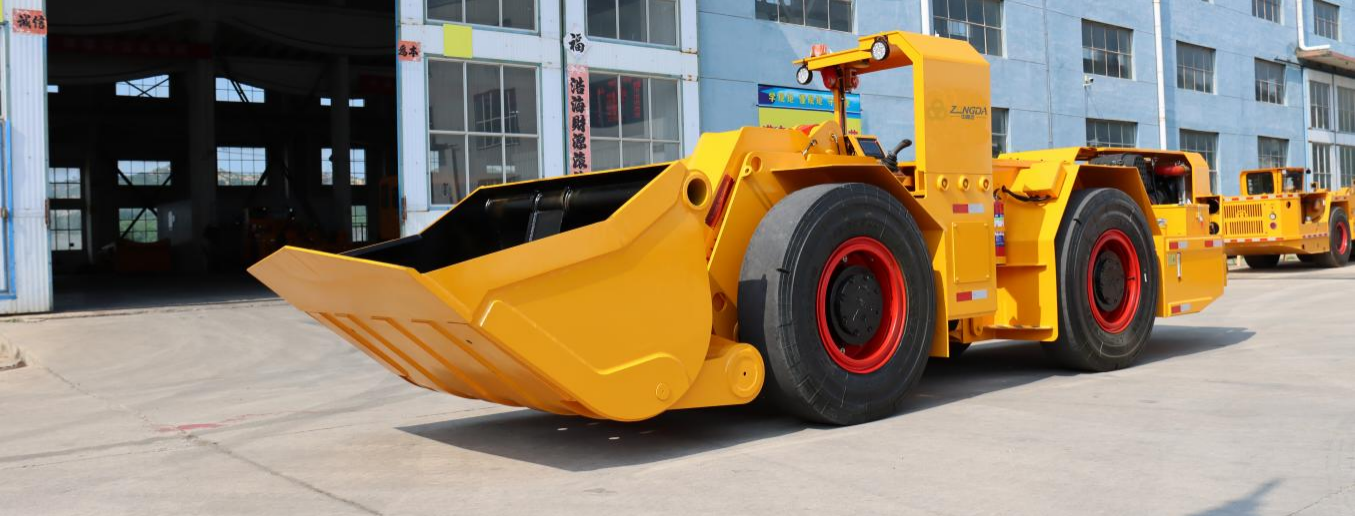

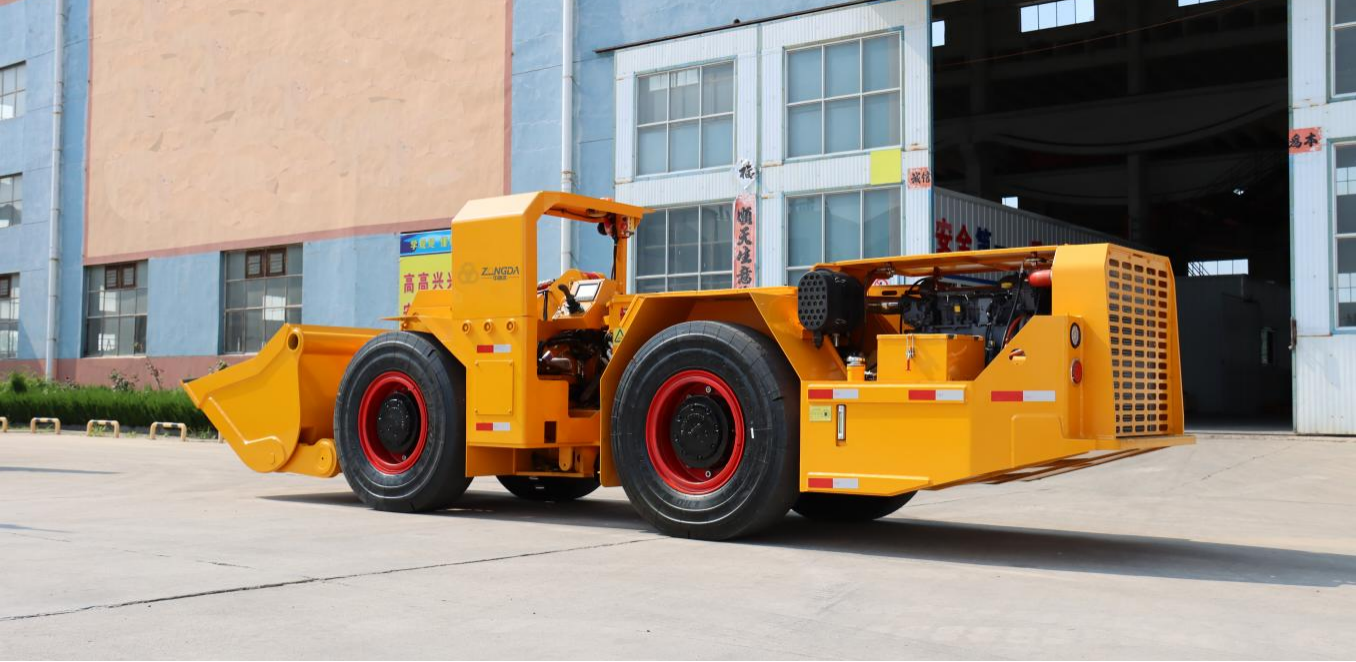

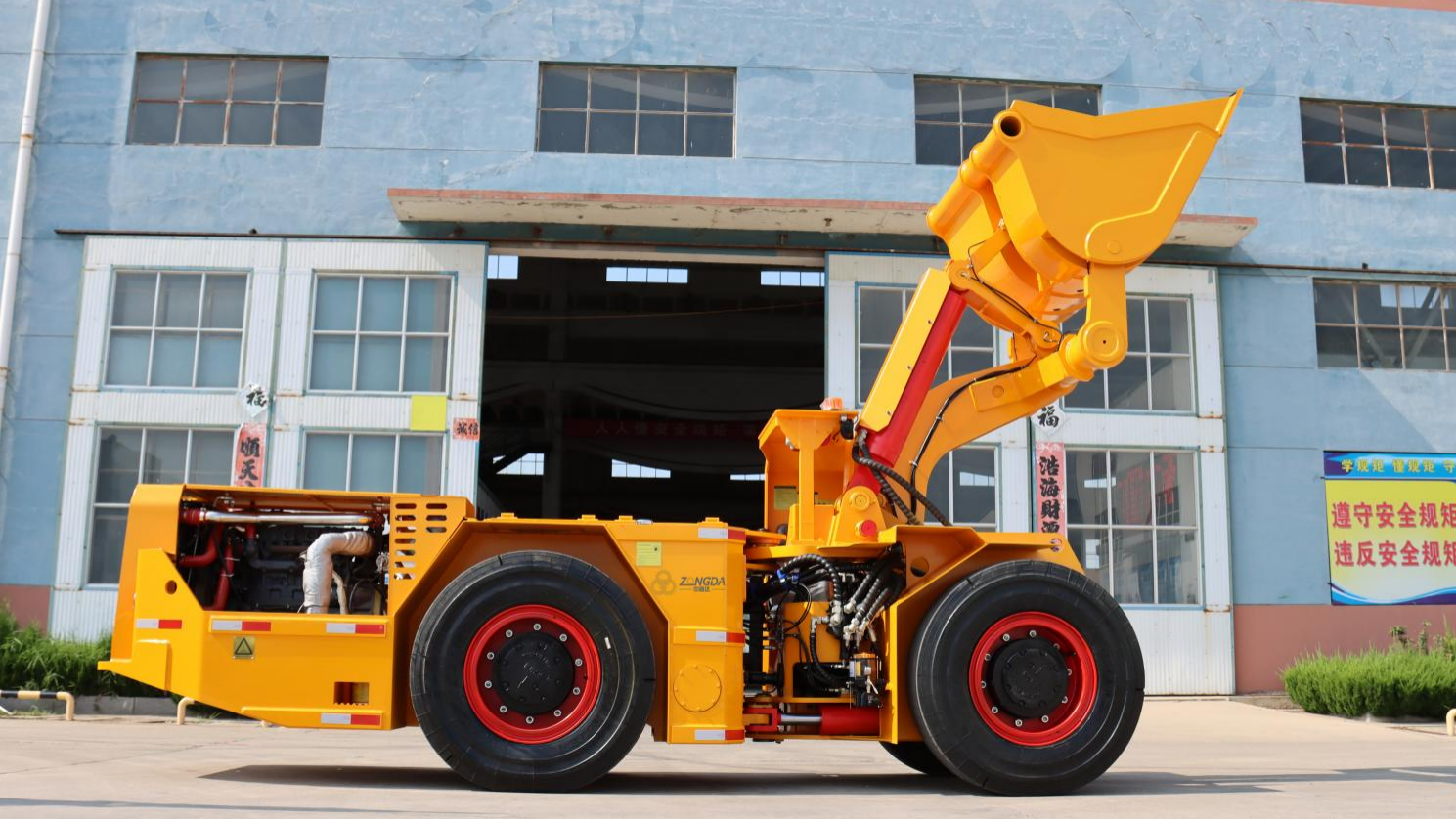

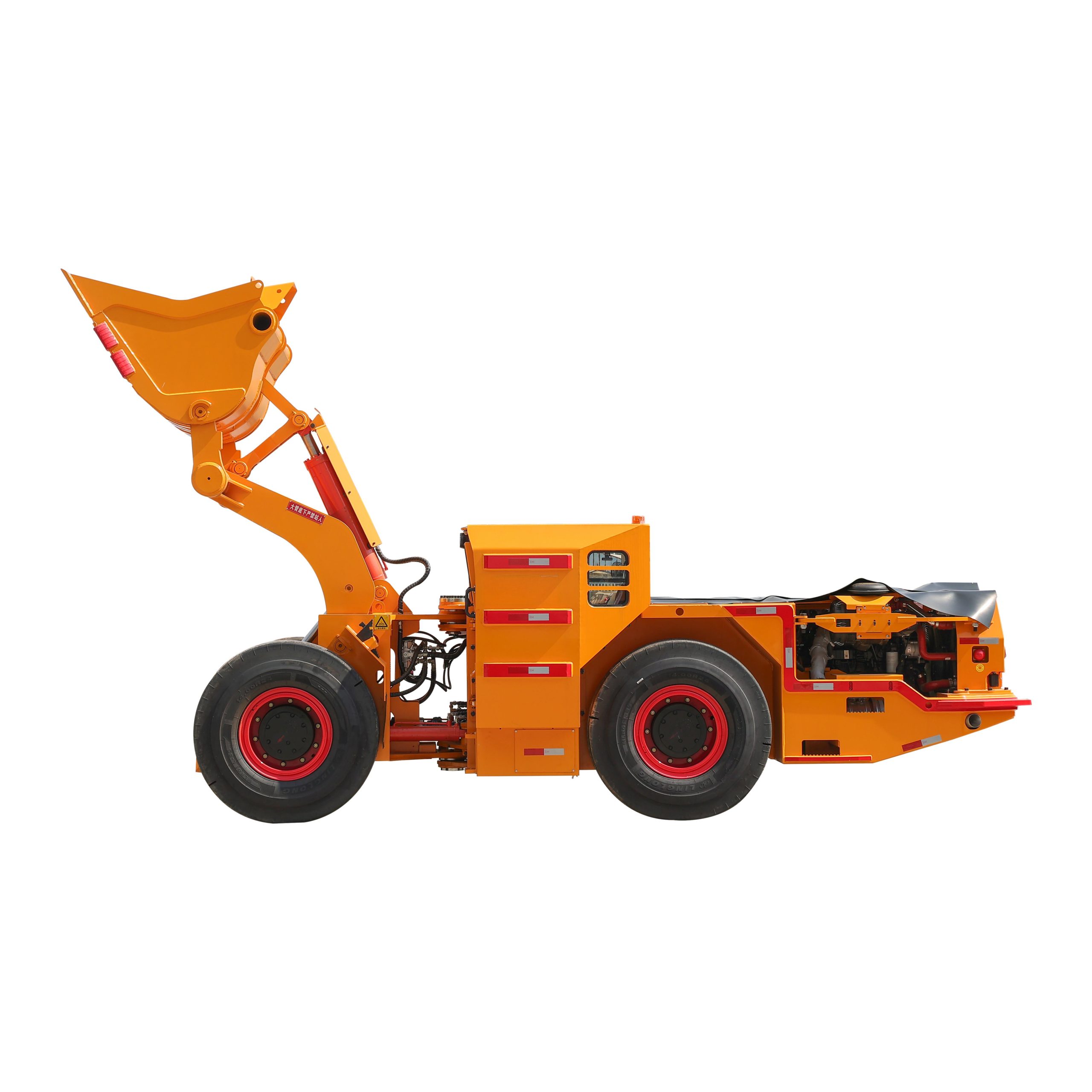

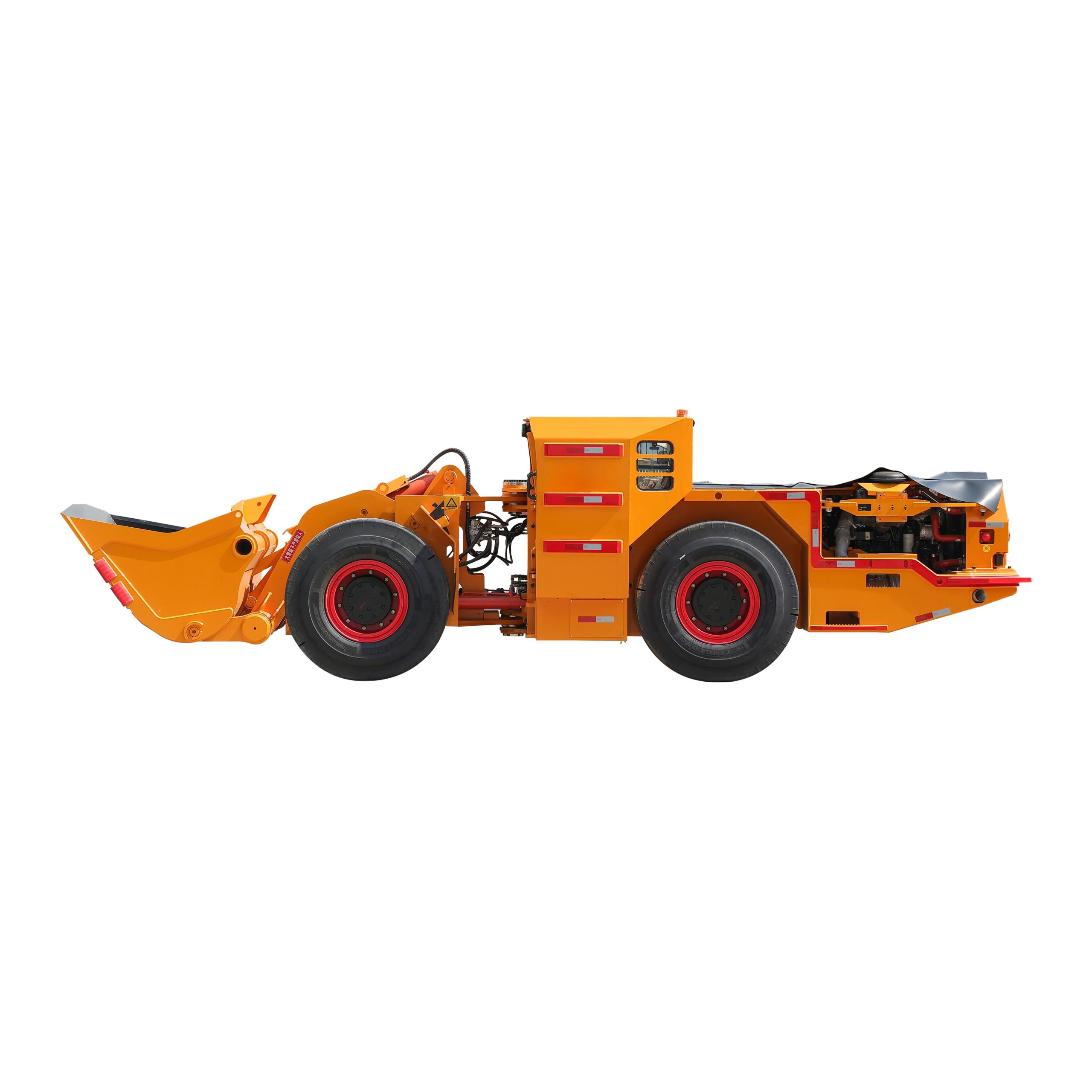

ZDL203N Underground Loader: Enhancing Trackless Mining Efficiency

The ZDL203N underground loader is purpose-built for underground mines, specifically designed to improve operational efficiency in conjunction with mining trucks during excavation and mining operations. Here are its key features:

     1.Technical Characteristics:

• Power System: Equipped with a Deutz air-cooled engine.
• Transmission: Utilizes a gearbox and torque converter.
• Braking System:
  • Driving Brake: Wet multi-disc spring brake with hydraulic release.
  • Parking Brake: Spring brake on the drive axle.
• Frame: Centrally hinged structure for improved adhesion performance.
• Steering: Hydraulic power steering with a single steering cylinder.

     2.Performance Highlights:

• Diesel Engine: Powered by a reliable diesel engine.
• Four-Wheel Drive: Ensures traction and maneuverability.
• Lateral Driving: Allows flexibility in tight spaces.
• Central Articulated Hydraulic Steering: Large steering angle for precise control.
• Small Turning Radius: Ideal for medium section tunnel operations.、

     3.Safety Measures:

• Safety Gear: Operators must wear safety helmets, carry self-rescue devices, and use mining lamps when entering the well.
• Regular Maintenance: Regular inspections and prompt addressing of hidden dangers.
• No Maintenance During Operation: Strictly prohibited to conduct maintenance while the machine is running.
• Safety During Welding/Cutting: Confirm absence of flammable or explosive materials before maintenance.
• Exhaust Pipe Precautions: Avoid physical contact with the hot exhaust pipe.
• Hydraulic System Maintenance: Pressure must be relieved before starting any repairs.

The ZDL203N loader plays a crucial role in achieving efficient and safe trackless mining operations.

Usage Conditions for the ZDL203N Underground Loader

     1.Tunnel Specifications:

• Suitable for tunnels with a cross-sectional size of 5 meters (height) × 2.5 meters (width) and above.
• Requires a firm top plate.
• Minimum turning radius of ≥ 4.3 meterson the outside.
• Road slope should be ≤ 14°.
• Adequate ventilation and drainagein the workplace.

     2.Environmental Factors:

• Ambient temperature within the tunnel: -5°C to 40°C.
• Maximum relative humidity (at 25°C): Not more than 85%.
• Altitude of usage location: Not exceeding 1000 meters.
• In high-altitude areas (above 1000 meters), power reductionis required for operation.

     3.Fuel Requirements:

• The sulfur content of the fuel used in this machine must not exceed 0.2%.

     4.Safety Precautions:

• Strictly prohibitedin places with flammable and explosive gases (such as gas and coal dust).

         Ensure compliance with these conditions for safe and efficient operation of the ZDL203N underground loader.

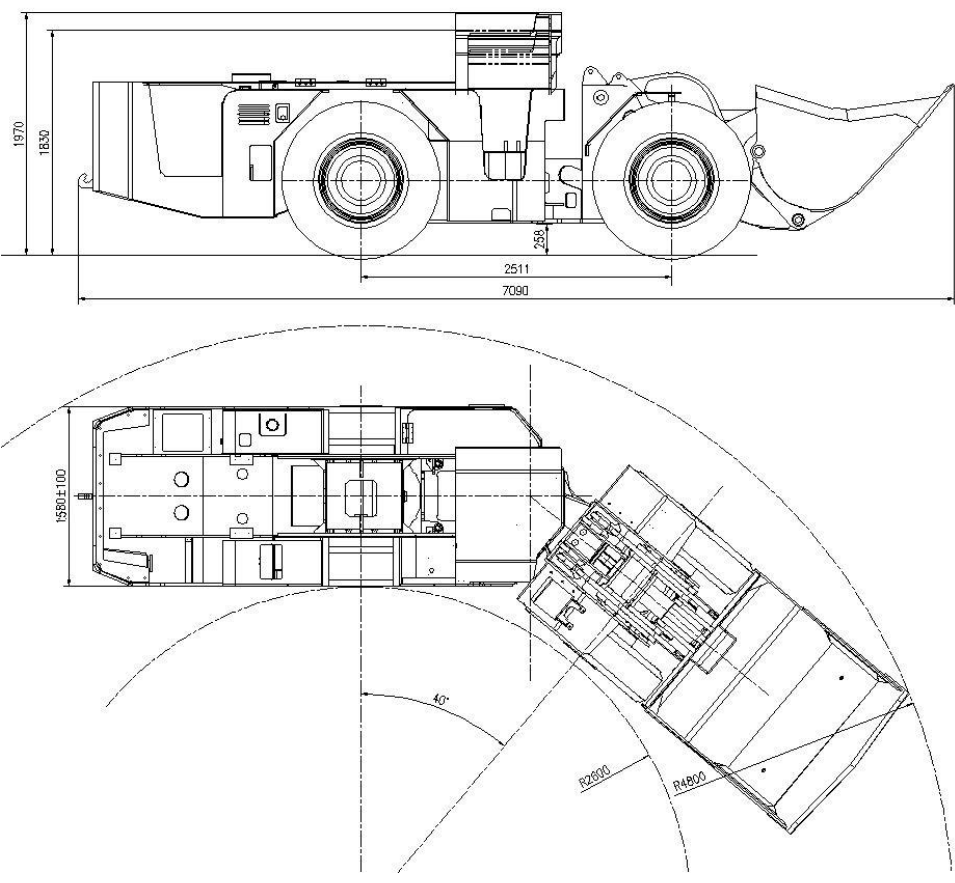

TECHNICAL DRAWING AND DIMENSIONS:

ZDL203N Underground Loader: Technical Specifications

1. Overall Dimensions

• Rated Load: 3000 kg
• Overall Length: 7090 mm
• Whole Machine Width: 1580 mm
• Overall Height (including driver’s cab): 1830-1970 mmadjustable
• Bucket Capacity (SAE): 1.5 m³
• Unloading Angle: 40°
• Wheelbase: 2395mm
• Minimum Ground Clearance: ≥ 190 mm
• Departure Angle: 14°

2. Machine Weight

• Empty Weight: 10,800 kg ± 300 kg
• Full Load Weight: 13,800 kg ± 300 kg

3. Operating Capacity

• Travel Speed (Gears):

• First Gear: 0-8km/h
• Second Gear: 0-9km/h
• ThirdGear: 0-19 km/h
• ForthGear: 0-20 km/h
  • Climbing Ability: 14°
  • Maximum Traction Force: ≥ 80kN
  • Maximum Shovel Force (SAE): ≥ 70kN

4. Fuel and Hydraulic Tanks

• Fuel Tank Capacity: 130 L
• Hydraulic Oil Tank Capacity: 130 L

5. Steering

• Central Articulated Hydraulic Power Steering
• Minimum Turning Radius:

• Inside: 2600 ± 200 mm
• Outer: 4800 ± 200 mm

Main Configuration

1. Engine

• Manufacturing Plant: Deutz
• Model: F6L914
• Type: Air-cooled diesel engine, Non turbocharger
• Rated Power: 79 kW/2300 rpm

2. Hydraulic Torque Converter

• Model: YJ315,
• Chinese EquivalentModel of DANA 272

3. Transmission

• Model: YD13 644 159A,
• Chinese EquivalentModel of DANA 20000 series

4. Drive Axle

• Model: 5,
• Type: Rigid planetary drive axle with NO SPIN differential

5. Hydraulic System

• Work Brake: Wet multi-disc brake with spring applied and hydraulic release
• Parking Brake: Spring applied, hydraulic released
• Multi-Way Valve: Oil force
• Gear Pump: PERMCO
