Product Details



Features and Advantages:

  1.  Power system adopts Cummins or Deutz with lower emissions.
  2.  Oscillation by means of slewing Frame, hydraulic steering, rear axle swing compared to traditional forms safer.
  3. Drivetrain system uses hydraulic torque converter, power shift transmission, and improve reliability.
  4. Operating system adopts pilot control, making the operation more simple work, work more efficiently.

5.Service brake is a spring applied, hydraulic release, and is equipped with an emergency braking system, the brake is safe and reliable.

  1. Exhaust system is equipped with imported purifier water filtration system, greatly reducing air pollution.
  2. Adopt 9.75-18 puncture resistant smooth rubber tires,
  3. The machine can be shoveling, loading, transport, unloading one operation, compact structure, convenient operation, high efficiency operation for recovery of mines and tunneling mucking, and workplace and road construction formation, transport of materials and other auxiliary operations.

9.Z-bar linkage for higher rollback force and faster bucket articulation.

Model ZDL215
Bucket volume (m3 ) 0.75
Rated load (t) 1.8
Weight (t) 7.8
Lifting time of the arms (s) ≤4
The sum of three items(s) ≤8
Forward gear(km/h) I 0-5.8 II 0-13.5
Reverse gear I 0-5.8  II 0-13.5
Max. climbing gradient 20°

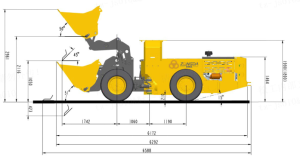

Overall dimension
(L×W×H mm)
6400×1300×2120
Wheel base (mm) 2310
Wheel tread(mm)                   1280
Max. dumping height(mm) 1400
Dumping reach (mm)                    1260
Engine model Deutz DL914
Engine type In-line Air-cooling,
4-strokec,4 cylinders,
direct-injection
Rated power(kw) 56 Kw
Rated speed (r/min) 2300
Total exhaust of cylinder(L) 4.2
Type of starting Electric start
Type of Method Mechanical Solution
Model Axle: XCMG AD YD50
Configuration Hydraulic Converter : ZF China J 285, Single stage, three elements
Type or Method Transmission:

ZF China 2000

Model Axle:ZONGDA  YD150
Type Forward & Reverse 2 speed shift
Axle and tire
Type of main reducer Spiral bevel gear,single stage
Type of final reducer Single stage planetary
Size of tire 1.00-20
Model of working pump CBG2063
Nminal displacement(ml/r) 63
Rated pressure(Mpa) 16
Multi-way directional valve HydroNeed DL20
Pressure(Mpa) 17
Rated flow(L/min) 100
Type Load-sensing hydraulic steering
Displacement(ml/r) 250
