ZONGDA Underground Diesel Loader are developed with the international standards, adopt foreign advanced technology, according to the actual situation of mines at home and abroad, combined with the practical experience of many years production of LHD.

2m3 Underground Diesel Mining Wheel LHD Loader Xywj-2

Share on facebook
Share on twitter
Share on linkedin

ZONGDA Underground Diesel Loader are developed with the international standards, adopt foreign advanced technology, according to the actual situation of mines at home and abroad, combined with the practical experience of many years production of LHD.

Product Details

With many factories, we can easily deliver a wide selection of Underground Mining Loader, Underground Mining Ventilation Fan, Flameproof Underground Shotcrete Spraying Machine. We not only hope to establish long-term cooperation with you, but also hope to be your good partner. We will assist you to gain more market share and earn more profits. We offer personalized solutions that give you plenty of choices. With a good reputation and a solid and meticulous service level, we can provide you with more professional support.

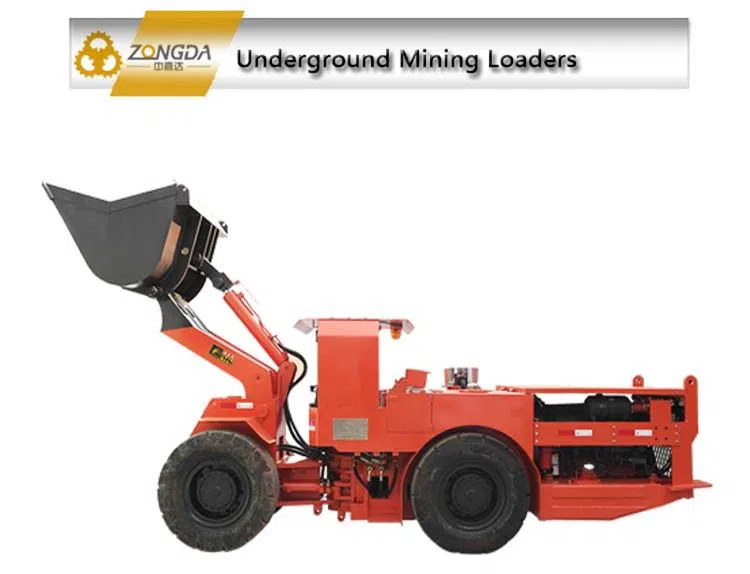

ZONGDA Underground Diesel Loader are developed with the international standards, adopt foreign advanced technology, according to the actual situation of mines at home and abroad, combined with the practical experience of many years production of LHD. It is mainly used for Load Haul and Dump of underground mines for the loose material loading to transport after blasting, can also be used in railway, highway and water conservancy tunnel engineering, especially suitable for the job in bad conditions. The job site is narrow, muddy and low working face situations.

ZDWJ-1 is a small underground mining loader for 2.5 x 2.5 m mine tunnels. It uses lateral driving and operation. The cab is spacious, with a wide view and comfortable operation.

The whole machine adopts the central hinged and slewing bearing type body swing structure, which has better stability and passing ability.

The transmission system uses a hydro static transmission system (pump &motor) for continuously variable speed.

The Diesel LHD is capacity of 2 tons. It’s driven by DEUTZ Engine BF4L914, improves productivity and underground tunnel, and reduces the pollution efficiently.

Characteristics

◆ The LHD is designed to swing the frame after the slewing ring is connected, which greatly reduces the failure rate.

◆ The traveling system adopts full hydraulic control operation, which makes the traveling system of loader more agile, effectively reduces the failure rate and improves the working efficiency.

◆ The working system adopts the pilot hydraulic control system, which makes the operation simpler and the working system more efficient.

◆ For parking brake, the transmission gearbox with brake friction plate brake, spring brake and hydraulic released contact brake are used to make the parking brake safe and reliable.

◆ The bucket adopts the latest V-shape structure of the international underground mining loader, which reduces the resistance of scooping.

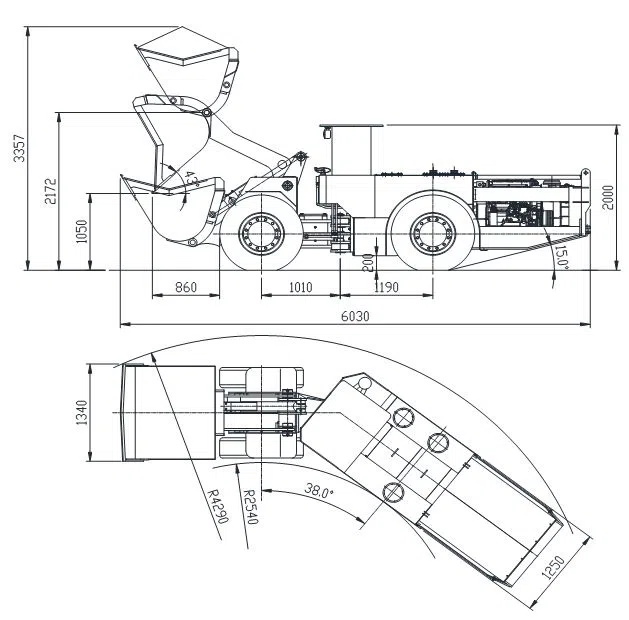

Technical Data

Rated Bucket Capacity 1m³ Running Speed 0-10 m/h
Rated Payload 2T Min. Clearance 200mm
Max. Breakout Force 48KN Max. Steering Angle ±38°
Max. Traction Force 56KN Angle of Rear Axle Swing ±8°
Max. Dumping Height 1050mm Departure Angle 15°
Max. Gradeability ≤20° Type of Tire 10.00-20
Min. Dumping Height 860mm Wheelbase 2200mm
Min. Turning Radius 4260 ( Outer ) Engine Deutz BF4L914
2540 (Inner) Deutz D914L04
Outer Dimensions 6030*1340*2000 mm³ Operation Weight 6.8T

The excellent technology and perfect craftsmanship make our 2m3 Underground Diesel Mining Wheel LHD Loader Xywj-2 always in the directing position. We keep up with the advanced level of the industry, achieve leapfrog development, continue to innovate, and strive to provide users with zero-defect products. On the basis of innovation, we focus on quality, honest service, sincere co-operation and joint development.
