Traditional CRAWLER MUCKING MACHINE was introduced into China 60 years ago. The first generation was used for surveying and mapping in Hebei province in China in the year of 1954. After promotion of 30 years, the second generation has become the one without winding.

Ewl-60 Underground Mine Tunnel Electric Mucking Machine

Share on facebook
Share on twitter
Share on linkedin

Traditional CRAWLER MUCKING MACHINE was introduced into China 60 years ago. The first generation was used for surveying and mapping in Hebei province in China in the year of 1954. After promotion of 30 years, the second generation has become the one without winding.

Product Details

We are a group of passionate engineers, designers and industry experts, and our mission is to help customers quickly find the Underground Exploration Drill Rig, Underground Ventilation Systems, Main Ventilation Equipment they need at a competitive price. We have created a cost-effective, timely delivery, thoughtful service brand to provide a more worthy of attention and reliable partners for the industry. The overall quality of our company’s management and technical team is domestically first-class. We are a modern manufacturer integrating product design and manufacturing, network sales and marketing, with very mature independent research and development capabilities.

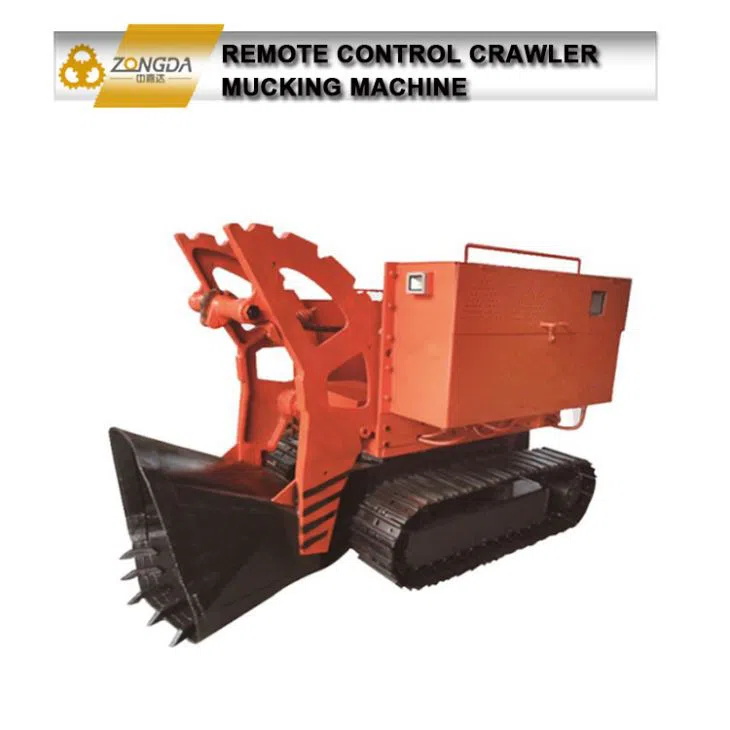

Remote control crawler mucking machine

Safety experts for solution of tunneling!

Taking the leading position in security!

Traditional CRAWLER MUCKING MACHINE was introduced into China 60 years ago. The first generation was used for surveying and mapping in Hebei province in China in the year of 1954. After promotion of 30 years, the second generation has become the one without winding.

With the experience, ZONGDA has researched and developed remote control crawler Mucking Machine rock loader which enhance the efficiency of thirty percent to reach the requirement of mining.

Structure

1.The original two electric control boxes has become only one. And another place has been replaced with hydraulic device. A set of hydraulic motors is added between turntable and tray, driving turntable to rotate.

2.Via a set of remote controller, the machine can be remote-controlled operation.

Features

1. Long distance (between 5m-20 m) keeps operators from away from dangers, lowering the risks of rollover.

2. Operator are relived from tedious labor with the enhancement of working environment.

3. Eficiency is enchanced by more than 30% due to its visual operation.

4. Lighting device is added in head of the machine

5. There are three control modes:

Remote control

Button control

Manual control for standby

Technical data

Model Z-17W Z-17WYK ZLKY20 Z-20W Z-20WYK ZLKY26 Z-30W Z-30WYK ZLKY45 ZQ26
Applicable roadway size W*H/m 1.7*2 1.7*2 2*2.2 2*2.2 2*2.2 2.2*2.5 2.2*2.5 2.2*2.5 2.2*2.5 2.2*2.5
Gauge 600//762/900mm ( customized )
Loading Capacity m³/h 20-30 30-40 35-45 30-40 40-50 50-60 50-60 60-70 80-100 50-60
Bucket volume㎡ 0.17 0.17 0.2 0.2 0.2 0.26 0.3 0.3 0.45 0.26
Loading width mm 1700 1700 Arbitrarily 2000 2000 Arbitrarily 2400 2400 Arbitrarily 2700
Bucket working height mm 1920 1920 1920 2180 2180 2240 2240 2240 2240 2240
Bucket down height mm 1320 1320 1210 1360 1360 1360 1360 1460 1250
Gradeability 25° 25° 25°
Size L mm 2120 2120 2287 2480 2480 2620 2660 2400
W mm 1130 1130 1372 1380 1380 1380 1380 1520 1090-1380
H mm 1200 1200 1415 1460 1460 1545 1650 1650 1500
Travel motor power kw 10.5 10.5 Hydraulic Motor 5000N/ 2units 10.5 10.5 Hydraulic Motor 5000N/ 2units 13 13 Hydraulic Motor 5000N/ 2units 8.83
Bucket motor power kw 10.5 10.5 13 13 13 13 15 15 15 14.71
Hydraulic motor power 1.5 7.5 1.5 7.5 2.2 11
Weight kg 3200 3300 3700 3750 3800 3900 4500 4500 4800 2700
Z- Rock loader; W-No tangled rope; YK-remote control; L-Crawler type;

ZLKY-Hydraulic remote control crawler rock loader

Delivery

We’re also concentrating on improving the things administration and QC program to ensure we could maintain terrific gain from the fiercely-competitive company for Ewl-60 Underground Mine Tunnel Electric Mucking Machine. We participate in the deepening of cooperation and high-quality competition in the global market on a larger scale, broader field and higher level. Presently, we’re wanting forward to even higher cooperation with abroad shoppers depending on mutual rewards.
