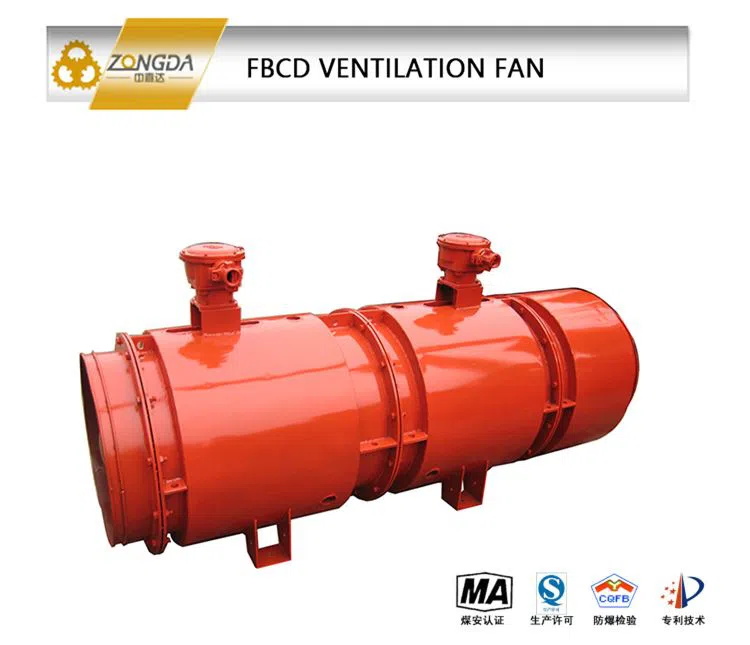

FBD series explosion proof ventilation fan (hereinafter referred to as fan) has the characteristics of reasonable structure, complete specifications, high efficiency, obvious energy saving effect, low noise, long air supply distance, etc.

Explosion Proof Mining Ventilation Fan

Share on facebook
Share on twitter
Share on linkedin

FBD series explosion proof ventilation fan (hereinafter referred to as fan) has the characteristics of reasonable structure, complete specifications, high efficiency, obvious energy saving effect, low noise, long air supply distance, etc.

Product Details

Product Specification

FBD series explosion proof ventilation fan (hereinafter referred to as fan) has the characteristics of reasonable structure, complete specifications, high efficiency, obvious energy saving effect, low noise, long air supply distance, etc.

According to different requirements of ventilation resistance, the whole machine can be used or used in different levels, so as to reduce the ventilation time and save energy. The length of the tunnel is less than 2000m, so it can not move the ventilator to supply air normally, which reduces the labor intensity of the workers and saves the ventilation time. It is an ideal equipment for local ventilation in the coal mine. At the same time, it can also be used in metallurgy, nonferrous metals, gold, chemical industry, shipbuilding, ceramics and other high-pressure ventilation occasions.

The structure of the ventilator is characterized by explosion proof ventilation fan, contra rotating, silencing and axial flow. It is mainly used in the coal mine with the risk of methane gas explosion, and can be used for the medium and long-distance ventilation of the coal mining face. At the same time, it is also suitable for local ventilation and tunnel ventilation in other mines.

Main purpose and scope of application

The normal working conditions of the fan are:

1) It is mainly used in the coal mine with the risk of methane gas explosion. It is installed in the air inlet tunnel and used together with the positive pressure air duct for the forced ventilation;

2) Medium temperature – 20 ℃ ~ + 40 ℃;

3) The altitude is less than 1000m;

4) The humidity is not more than 95% (at 25 ℃).

Standards For Fans

The fan shall comply with MT222<< Technical Conditions Of partial Fan for coal mine>> and Q /ZFJ002<< FBD series mining explosion proof ventilation fan press in counter rotating axial flow partial fan>>

Working principle of ventilator

Each stage of the fan is driven by a explosion proof ventilation fan motor with the same rated power. The impeller is directly installed on the shaft extension of the motor, and the rotation direction of the impeller between adjacent stages is opposite. After entering the first stage impeller to obtain energy, the gas is accelerated by the second stage impeller and then discharged by the third stage impeller or the fourth stage impeller. The rear stage impeller has the function of the stationary blade in the ordinary axial-flow fan. It can not only obtain the velocity component in the straight circumferential direction, but also increase the air flow energy, so as to achieve higher air pressure and efficiency than the ordinary axial-flow fan.

The mining explosion proof ventilation fan press in counter rotating axial flow local fan produced by our company adopts the newly developed patent technology <<Impeller Combination of Counter Rotating Axial Flow Fan>>, and also adopts the first domestic patent technology <<Automatic Switching Device>>

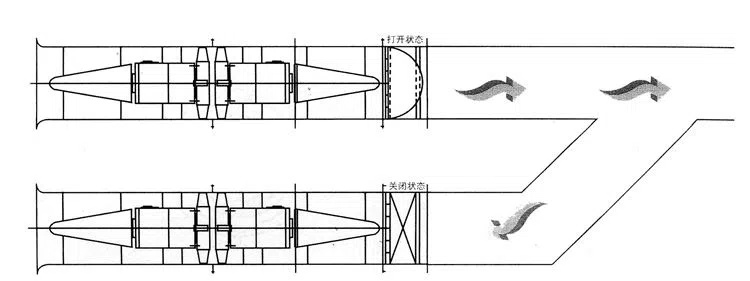

The patented product <<Automatic Switching Device>> is installed at the air outlet of the fan, to automatically realize the locking of the main and auxiliary fans. When the main fan is running, under the action of wind pressure, the automatic switching device of the main fan will automatically open and the automatic switching device of the auxiliary fan will automatically close.

Main performance characteristics

1. The fan is composed of two or more working motors, and the adjacent impellers rotate in relative direction. That is to say, the number of two stage blades is prime to each other. The energy of the air is obtained by the first stage impeller and is sent out after being pressurized by the second stage impeller. In addition to increasing the air flow energy, the second stage impeller also has the function of static guide vane in the ordinary axial flow fan. While obtaining the velocity component in the direction of straightening the circumference, the second stage impeller straightens the air flow impact, increases the air flow energy, reduces the wake vortex, and reduces the noise.

2. In the whole working condition of the fan performance curve, the performance of the fan is improved, the power of the two-stage impeller shaft is balanced, and the maximum power is equal. The key point is to solve the problem that the shaft power of the two-stage impeller in the original pair of cyclones is unbalanced. When the pipeline resistance increases, the increase of the second stage shaft power speed leads to the excessive shaft power of the impeller at the same level, which is easy to burn down the motor.

3. Under various working conditions, the wind pressure is relatively gentle, the surge phenomenon is small, the operation is also stable in the area of high wind pressure and small flow, the air supply distance is far in the underground, and the adaptability is strong to the complex roadway. Key solutions: low efficiency, high energy consumption and high noise of the original pair of cyclones.

4. The new type of explosion proof ventilation fan (automatic switching explosion-proof counter rotating axial flow partial fan) highlights the advantages of high air pressure, long air supply distance and convenient switching. Key solutions: requirements of “four complete”, “three special”, “two locking” and “one switching” in partial fan management.

Technical performance Parameters of Two Stages Ventilation Fan

Type Rotaltion Rate Power Rated Voltage

 (V)

Single Motor Capacity M3/Min Total Pressure Pa Maximum Total Pressure

%

A Sound Level (Db) Outer Dimention
R/Min Kw Rated Current

(A)

Φ×L(Mm)
№3.5 2840 2×2.2 380/660 4.8/2.8 204~126 760~1140 86 22 445×1135
№4.0 2830 2×1.1 380/660 2.5/1.4 92~47 152~1707 86 22 575×1500
2×1.1(A)
2840 2×1.5 380/660 3.4/2.0 111~56 172~1933 86 22
2840 2×2.2 380/660 4.8/2.8 136~72 251~2156 86 22
2880 2×3 380/660 6.4/3.7 115~86 351~2300 86 22
№5.0 2830 2×1.1(A) 380/660 2.5/1.4 92~47 152~1707 86 22 700×1930
2900 2×4 380/660 8.1/4.7 184~102 231~2200 86 22
2900 2×5.5 380/660/1140 11.1/6.4/3.7 200~100 220~2950 86 22
2900 2×7.5 380/660/1140 14.8/8.7/5.0 255~155 380~3524 86 22
№5.6 2900 2×7.5 380/660/1140 14.8/8.7/5.0 274~124 354~3573 86 22 770×2100
2930 2×11 380/660/1140 21.6/12.6/7.2 345~191 495~4518 86 22
2930 2×15 380/660/1140 28.8/17.0/9.6 395~250 700~4740 86 22
№6.0 2930 2×15 380/660/1140 28.8/17.0/9.6 420~240 350~5150 86 22 820×2500
2930 2×18.5 380/660/1140 35.5/20.5/11.8 486~256 513~5330 86 22
2940 2×22 380/660/1140 41.0/24.4/13.67 525~310 615~5460 86 22
№6.3 2930 2×15 380/660/1140 28.8/17.0/9.6 420~240 350~5150 86 22 850×2500
2930 2×18.5 380/660/1140 35.5/20.5/11.8 486~256 513~5330 86 22
2940 2×22 380/660/1140 41.0/24.4/13.67 525~310 615~5460 86 22
2950 2×30 380/660/1140 56.9/32.9/18.5 590~320 760~5900 86 22 850×2700
№7.1 2950 2×30 380/660/1140 56.9/32.9/18.5 620~370 600~6624 86 22 930×2740
2950 2×37 380/660/1140 67.9/40.3/22.6 745~400 890~6630 86 22
2970 2×45 380/660/1140 82.1/48.4/27.4 830~545 1450~6780 86 22 930×2830
№8.0 2950 2×30 380/660/1140 56.9/32.9/18.5 520~265 400~6600 86 22 1040×2760
2970 2×45 380/660/1140 82.1/48.4/27.4 680~380 600~7600 86 22 1040×2900
2970 2×55 380/660/1140 102.6/59.3/34.3 820~480 700~8300 86 22 1040×3050
2970 2×75 380/660/1140 140.1/80.7/46.7 1260~675 2160~7170 86 22 1040×3190

Technical performance Parameters of Three Stages Ventilation Fan

Type Rotaltion Rate Power Rated Voltage

(V)

Single Motor Capacity M3/Min Total Pressure Pa Maximum Total Pressure

%

A Sound Level

(Db)

Outer Dimention
R/Min Kw Rated Current

(A)

Φ×L(Mm)
№4.0 2840 3×2.2 380/660 4.8/2.8 226~110 410~2590 86 22 575×2250
2880 3×3 380/660 6.4/3.7 226~120 410~2670 86 22
2890 3×4 380/660 8.1/4.7 226~146 410~3290 86 22
№5.0 2900 3×5.5 380/660/1140 11.1/6.4/3.7 245~155 430~4430 86 22 700×2600
2900 3×7.5 380/660/1140 14.8/8.7/5.0 306~175 470~5000 86 22
№5.6 2930 3×11 380/660/1140 21.6/12.6/7.2 408~194 500~6080 86 22 770×3560
2930 3×15 380/660/1140 28.8/17.0/9.6 460~245 600~7240 86 22
№6.3 2930 3×18.5 380/660/1140 35.5/20.5/11.8 510~245 610~7850 86 22 850×3740
2940 3×22 380/660/1140 41.0/24.4/13.67 560~245 610~8560 86 22
2950 3×30 380/660/1140 56.9/32.9/18.5 640~252 620~9000 86 22
№7.1 2950 3×37 380/660/1140 67.9/40.3/22.6 745~400 1170~9180 86 22 930×3830
2970 3×45 380/660/1140 82.1/48.4/27.4 830~545 1450~9220 86 22
№8.0 2970 3×55 380/660/1140 102.6/59.3/34.3 990~625 1810~9330 86 22 1040×4250

Technical performance Parameters of Four Stages Ventilation Fan

Type Rotaltion Rate Power Rated Voltage

 (V)

Single Motor Capacity M3/Min Total Pressure Pa Maximum Total Pressure

%

A Sound Level (Db) Outer Dimention
R/Min Kw Rated Current

(A)

Φ×L(Mm)
№4.0 2840 4×2.2 380/660 4.8/2.8 226~110 525~3330 86 22 575×2820
2880 4×3 380/660 6.4/3.7 226~120 525~3980 86 22
№5.0 2890 4×4 380/660 8.1/4.7 226~146 525~4220 86 22
2900 4×5.5 380/660/1140 11.1/6.4/3.7 245~155 560~5690 86 22 700×3130
2900 4×7.5 380/660/1140 14.8/8.7/5.0 306~175 590~6430 86 22
№5.6 2930 4×11 380/660/1140 21.6/12.6/7.2 408~194 610~7350 86 22 770×4180
2930 4×15 380/660/1140 28.8/17.0/9.6 460~245 767~9380 86 22
№6.3 2930 4×18.5 380/660/1140 35.5/20.5/11.8 510~245 785~10100 86 22 850×4460
2940 4×22 380/660/1140 41.0/24.4/13.67 560~245 785~11000 86 22
2950 4×30 380/660/1140 56.9/32.9/18.5 640~252 805~11570 86 22
№7.1 2950 4×37 380/660/1140 67.9/40.3/22.6 745~400 1450~11830 86 22 930×4570
2970 4×45 380/660/1140 82.1/48.4/27.4 830~545 1810~11860 86 22
№8.0 2970 4×55 380/660/1140 102.6/59.3/34.3 990~625 2160~11980 86 22 1040×5070
