Product Details

KQP-B

Working principle

The principle is air pressure transmission mode. Compressed air is ejected from the air blaster body in an instant to produce powerful air. The air flow directly flows into the blocking and retention area where the failed materials are stored: the compressed air expands rapidly in the blocking and retention area of the silo. The energy generated overcomes the blocking of materials, which is caused by static friction, and makes the materials in the bin resume gravity flow. Ensure the continuity of material transportation and production.

Product characteristics

1. High efficiency: the air flow directly acts on the materials easy to arch and accumulate in the silo, with high efficiency of plug removal.

2. The safe air blaster plug remover is designed and manufactured according to the simple pressure vessel specified in the relevant national regulations and standards, and it can maintain air pressure

The amount of air ejected from the air tank is limited in a moment, which will not impact the wall and pipe. Working medium: inert gas like compressed air or ammonia. No leakage design, the piston will be reset immediately after release to prevent the internal substances in the silo from entering the air blaster.

3. The effect is the best: the air blaster is successful by using the air blast force produced by the instantaneous explosion of gas stored in the air tank

In order to prevent and remove material arching and blocking, the effect of cleaning and blocking is the best.

4. Low energy consumption: because the air cannon is working at intervals, the amount of compressed air released each time is not large, and the energy consumption is much lower than other flow cleaning and plugging AIDS.

5. Low noise: the sound of the compressed air released is almost all absorbed by the materials in the bin, and it works by at intervals, So the noise is low.

6. Easy maintenance: the structure of the air gun is single and reasonable, easy to install and disassemble, Easy to maintain, less maintenance work. Simple moving parts, no motor, no bearing

No lubrication required.

7. New structure: the diaphragm type air gun is easy to cause back pressure and anti dust. The electromagnetic pulse valve is slow in response and easy to fail in action. The piston type release valve is adopted. The bearing action is sensitive, and it really achieves the purpose of releasing in sequence. New generation product adoption. For the air intake of the blaster body, a two position two-way solenoid valve is used instead of oil mist filter and water filter, so as to avoid a series of problems and disadvantages caused by the installation of oil mist device and water shield, Increase the service life of the solenoid valve.

8. Shock absorption release main bearing: innovative design in the release main bearing of air blaster

The shock absorption mechanism absorbs the gas pressure during shooting in the working state

The recoil energy transmitted to the piston reduces the vibration and avoids the production when the piston rebounds. The life plug cracking phenomenon extends the service life of the activity. At the same time, The service life of piston ring, cylinders and other vulnerable parts has been increased by more than twice.

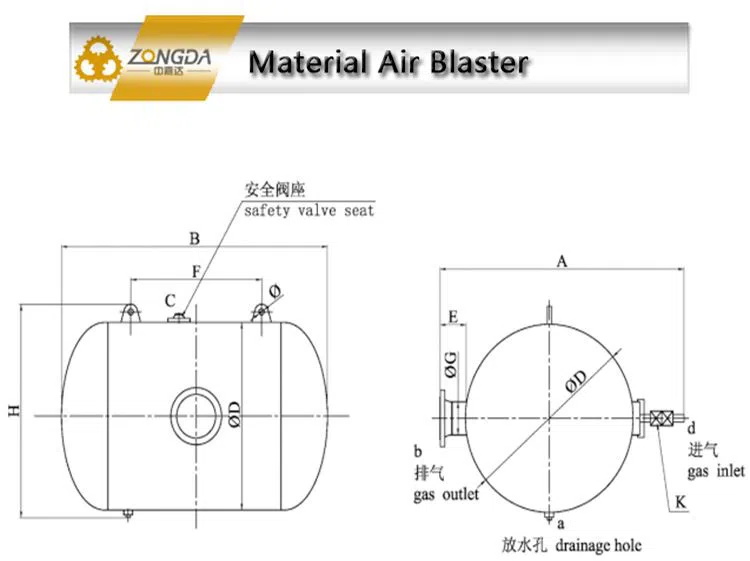

General Drawings and Technical Data

Model Capacity
L
A
mm
B
mm
φD
mm
E
mm
F
mm
φG
mm
H
mm
C
Safe valve
seat
Φ

Slinger
hole

K

Air
intake

Working
pressure
MPa
Impact
force
N
Explosion
energy
J
Weight
kg
KQP-50B 50 710 600 410 170 200 76 486 ZG3/8 16 G1/2 0.4-0.8 1580-5100 72000 45
KQP-100B 100 710 750 410 170 300 76 486 ZG3/8 16 G1/2 0.4-0.8 3000-8000 81600 50
KQP-150B 150 810 850 510 170 300 89 580 ZG3/8 16 G1/2 0.4-0.8 4500-10000 123600 70
KQP-160B 160 910 900 510 180 480 89 580 ZG3/8 16 G1/2 0.4-0.8 5500-12500 129000 81
KQP-220B 220 910 1012 510 180 480 108 680 ZG3/8 16 G1/2 0.4-0.8 6000-13000 220800 95
KQP-300B 300 910 1372 610 180 520 108 680 ZG3/8 16 G1/2 0.4-0.8 6350-14650 251160 125
