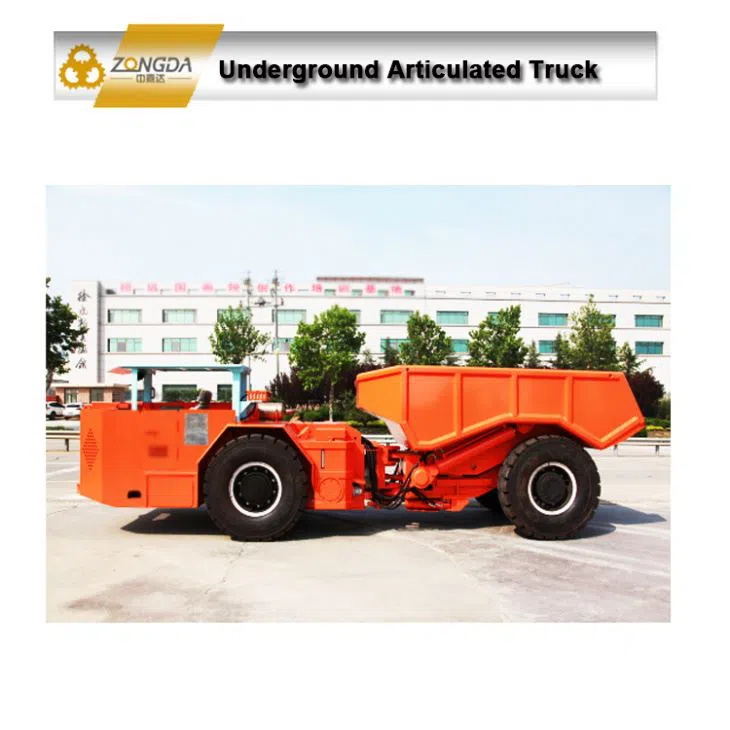

Mini Underground Mining Dump Truck with Loading Capacity 1ton to 6 Tons

Share on facebook
Share on twitter
Share on linkedin

DK series truck is designed to transport the ore safely, productively and profitably in extreme conditions with high capacity, strong power and four-wheel driven.

Mini Underground Mining Dump Truck with Loading Capacity 1ton to 6 Tons

Share on facebook
Share on twitter
Share on linkedin

DK series truck is designed to transport the ore safely, productively and profitably in extreme conditions with high capacity, strong power and four-wheel driven.

Product Details

We firmly believe that people’s character creates the cause and the high-quality Scooptram LHD, Flameproof Underground mining Loco, Underground Ventilation Systems open up the market. Upholding firm ideals and striving to get more effective products, we look forward to creating a more ideal future with all customers. Our company has a wide range of customer resources and market resources all over the world under the efforts of a high-quality and experienced excellent team, and accumulated good corporate reputation and brand image. While attaching importance to bringing enthusiasm, courtesy and professional service experience to every customer online, we also emphasize on offline return visits and tracking, so as to better understand the product effect and optimize the service in time.

Features

Rated load of 16t, suitable for ≥3.5×3.5m tunnel

DK series truck is designed to transport the ore safely, productively and profitably in extreme conditions with high capacity, strong power and four-wheel driven.

Central articulated steering with small turning radius.

Oscillation by slewing bearing amounted front and rear frames enable the four wheels driving at any time in the rugged rock road.

The bodies are made of high strength alloy steel plate, the chassis strength increased by 33%.

DEUTZ engine. DANA Torque Converter & Transmission.

Technical Data

Dimension 8000(±100)mm×2180(±50)mm×2250(±50)mm
Engine DEUTZ BF6M1013EC 165KW(221HP)
Torque converter DANA C270
Transmission DANA R32000
Drive axle DANA 16D
Bucket 8m³
Rated Load 16t
Unload weight 15.8t
Climbing Capacity 15°
Min.Ground Clearance 280mm
Speed 0-23.87km/h
Turning Angle ±40°
Joint angle ±8°
Min.Steering Radius 4630(±50)mm(inside)
7570(±50)mm(outside)

We are committed to create highly efficient, energy-saving and environmentally friendly Mini Underground Mining Dump Truck with Loading Capacity 1ton to 6 Tons since we have a group of our own talents who continue to learn from new equipment and technology. Our company is an honest and trustworthy enterprise, and has won the recognition and support of employees, suppliers and customers. In recent years, we have achieved rapid development and continue to promote product upgrades, and our products are well received by customers all over the world. We deeply promote energy saving and emission reduction in the production process, and actively implement sustainable development policies.
