Product Details

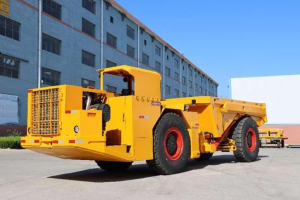

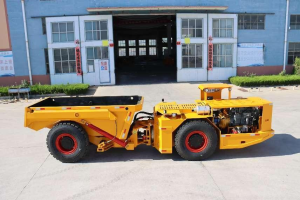

The ZDT210 Underground Mining Truck is a trackless transportation equipment designed and manufactured specifically for underground mines. Mainly used in conjunction with scrapers in underground excavation and mining operations. Transporting ores and various materials can greatly improve operational efficiency and is an important equipment for achieving trackless mining. The ZDT210 Underground Mining Truck is powered by a diesel engine, with hydraulic mechanical transmission, four-wheel drive, lateral driving, rear dump truck body, central articulated hydraulic steering, large steering angle, flexible turning, and small radius. It is suitable for medium section tunnel operations and has the following technical characteristics:

● The power system adopts a Deutz water-cooled low pollution engine; ● The power transmission system adopts DANA gear transmission, spring brake hydraulic release drive axle, and mining resistant cutting tires;; ● The driving brake adopts a wet multi disc spring brake hydraulic release brake; MICO filling valve and brake valve; The parking brake adopts a spring brake on the drive axle for braking; ● The frame adopts a central hinged rotary structure to improve the adhesion performance of the entire machine; ● The steering system is a hydraulic power steering system with dual sided steering cylinders; ● Rear dump truck, convenient for dumping ores and materials. Safety warning ● The operator of this machine must wear a safety helmet and carry a self rescue device and a mining lamp with them when entering the well; ● This machine must be regularly maintained and inspected, and any hidden dangers should be promptly addressed; ● It is strictly prohibited to conduct maintenance while the machine is in operation; ● When the machine is undergoing maintenance, the power must be cut off and the words “under maintenance, no starting” must be hung; ● When conducting maintenance under the raised car body, the car body must have firm and reliable support; ● When entering the machine for welding and cutting, safety measures must be taken after confirming that there are no flammable or explosive materials present Only with full measures can operations be carried out;

● When the engine is running and the exhaust pipe has not cooled down after shutdown, it is strictly prohibited to have physical contact with the muffler ● The surface of the exhaust pipe to avoid serious injuries such as burns; ● When repairing the hydraulic system of this machine, the pressure must be completely relieved before starting the operation. Application conditions: 1) This machine is suitable for use in tunnels with a cross-sectional size of 3m (high) × In tunnels of 3.5 meters (width) and above. It requires a firm top plate, a minimum turning radius of ≥ 7.3 m on the outside, and a road slope of ≤ 14 °, Good ventilation and drainage in the workplace; 2) The temperature of the tunnel is -5 ℃ to 40 ℃, and the maximum relative humidity is not more than 85% (temperature at 25 ℃) Time); 3) The altitude of the usage location shall not exceed 1000 meters, and in the highland area with an altitude exceeding 1000 meters, the power reduction is required for use; 4) The sulfur content of the fuel used in this machine shall not exceed 0.2%; 5) This machine is strictly prohibited from being used in places with flammable and explosive gases such as gas and coal dust;

2.1. Technical parameters ●Rated load capacity: 10t (full load) ● Bucket capacity (stacking): 5 m ³ ● Maximum driving speed front/reverse gear I: 5.00 km/h ●Front/reverse gear II: 9.70 km/h ●Front/reverse gear III: 21.60km/h ●Front IV gear: 28.90km/h ●Vehicle lifting time: 13 seconds ●Car box descent time: 10 seconds ●Maximum climbing capacity (heavy load): 25% ●Maximum traction force: 100 kN ●Turning radius: Inner 4500 mm

●Maximum height of the machine during unloading: 3875mm ●Maximum unloading angle: 65 ° ●Steering angle: ± 40 ° ●Minimum ground clearance: 296 mm ●External dimensions L × W× H: 8031 mm × 1900mm × 2230 mm (± 100) ●Operating weight of the whole machine: 13.5 tons 2.2. Engine ●Engine: Deutz BF6L914 air-cooled engine ●Rated power/rated speed: 112 kW/2300 r/min ● Starting method: Electric start ● Exhaust gas purification method: Catalytic purification method ● Accelerator control: Hydraulic throttle controller 2.3. Transmission system ●Transmission model: DANA R32420 ●Torque converter model: DANA C273.7 ●Drive axle model: 15T ●Final drive ratio: 5.286 ●Wheel edge speed ratio: 4.94 ●Total speed ratio: 26.11 ● Tires: 14.00 inflatable tires 2.4. Braking system (well-known domestic manufacturer) ●Brake pump: CBLZ632016 ●Displacement: 16ml/r ●Maximum pressure of braking system: 16 MPa ● Driving brake: Wet multi disc spring brake ●Brake valve model: MICO

●Release pressure: 103 bar ● Parking brake: Spring brake on the drive axle ●Spring brake, hydraulic release brake ●Park brake valve model: RA3/3/2/G-3 2.5. Steering system (well-known domestic manufacturer) ● Type: Central rotary hinge, hydraulic steering ●Steering working pump: CBLZ632016 ●Displacement: 63ml/r ● Maximum pressure of steering system: 14 MPa ●Steering gear: BZZ-1000 ●Priority valve: YXZ-F250 ● Steering cylinder diameter/rod diameter × Number of cylinders: φ 100/ φ 55 mm × two 2.6. Working System ● Working directional valve: SN-6 ● Lift cylinder diameter/rod diameter × Number of cylinders: φ 160/ φ 70mm × two ●Maximum pressure of the working system: 16MPa 2.7. Electrical system ●System voltage: 24V DC ●Starting motor voltage/power: 24V/6kW ●Lighting: 6 front headlights, 2 × 75W, 24V ●1 rear headlight, 2 × 75W, 24V ●Two side headlights, two × 75W, 24V ●2 mining signal lights, 24V ●1 cab ceiling light, 24V 2.8. Fuel tank capacity ●Hydraulic oil tank: 180 L ●Fuel tank: 180 L

●Transmission: 28L ● Drive axle main transmission part: 17L × two ●Drive axle wheel reduction part: 3.5 L × four ●Engine lubricating oil: 28L
