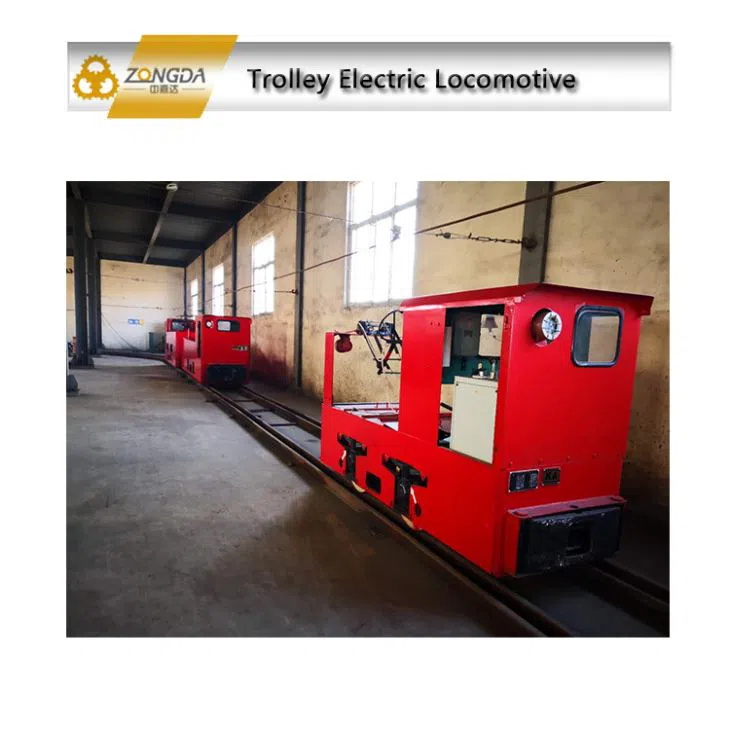

14t Trolley Electric Locomotives are new products specially designed for large mines, with features of compact size, short wheelbase, small turning radius, faster speed and bigger traction force.
14t Trolley Electric Locomotives are new products specially designed for large mines, with features of compact size, short wheelbase, small turning radius, faster speed and bigger traction force.
Our target should be to consolidate and enhance the top quality and service of current goods, in the meantime frequently create new products to satisfy diverse customers’ calls for Flame Proof Mining Battery Locomotive, Flameproof Underground mining Loco, Mobile concrete sprayer for underground mining. We adhere to the ‘heart to do, create value for customers’ business philosophy, with professional, standardized, meticulous work attitude. Entering a new era, we will remember our original mission and set out again to cultivate our distinctive corporate culture.
CJY14/610 G250
Technical Data
14t Trolley Electric Locomotives are new products specially designed for large mines, with features of compact size, short wheelbase, small turning radius, faster speed and bigger traction force. IGBT stepless speed regulating locomotives are new generation of energy-saving products with stable starting and low failure fate.

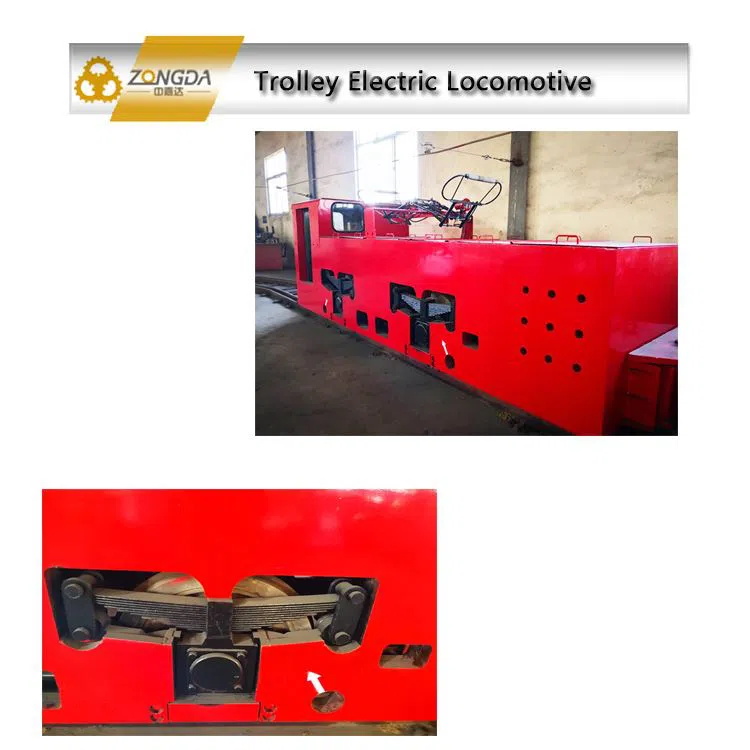

The motor adopts V-shaped rubber spring, which can stand and vibration and impact in the longitudinal, transverse and vertical directions. Its wing plate uses the rubber elastic wing plates to guarantee small impact suffered when passing the unloading pit.
| Adhesive Weight | t | 14 |
| Gauge | mm | 610 |
| Rated Voltage | v | 250 |
| Hour Rated Traction Force | kN | 26.68 |
| Hour Rated Speed | Km/h | 12.9 |
| Structural Speed | Km/h | 27 |
| Electric Motor and Power | kw | 2*52 |
| Wheel Base | mm | 1700 |
| Min. Radius of Curvature | m | 22 |
| Dia. Of Wheel | mm | 760 |
| Shake Absorbing | Plate shake absorber | |
| Control Type | Resistance Control or Chopper Control | |
| Brake Type | Mechanical Brake | |
| Drive Type | Closed Two Stage Gear Drive | |
| Pantograph Collector | Customized | |
| Outer Dimension | mm | L: 4660mm W: 1270mm H: Confirming according to Customized Pantograpg |
| Requirements on body Cover | Central Bulge for water flow | |
| Painting and Color | Enhanced Corrosion and Rust Prevention, Red Painting. |
We constantly surpass ourselves, and are committed to continuing to provide manufacturers and customers with leading technology and cost-effective 3t Trolley Electric Locomotive, Overhead Line Mining Locomotive. Our company advances with the strategy of ‘technology-oriented, quality for survival, and reputation for development’. Our company has a professional marketing promotion team, accumulated rich professional knowledge and cooperation experience so we can provide more perfect service for customers.
QINGDAO ZONGDA MACHINERY CO., LTD is a professional manufacture focusing on research and development, production, sale and service of underground mining machinery, a solution supplier and a mining project contractor in China with strong comprehensive strength and rich experience in mining industry.
We have more than 30 professional and experienced mining experts and engineers and 200 staff for R&D, Production, QC, After Sales Technical Support and etc.
We have fulfilled our commitment to turn knowledge into value by delivering a comprehensive range of integrated equipment and services that cost-effectively transform ore bodies into high grade mineral products for customers.
A: We produce underground mining vehicles and spare parts for metal mines.
A: Yes.
A: Our quotations usually under CIF terms include Freight and Insurance but no Tariffs.
A: 1 or 2 months usually. Yes and there are stock available sometime.
A: Our forwarder partner will arrange the proper transportation solution and can arrange the door-to-door service as well.
A: We have special and detailed warranty policy.
A: Yes.
A: TT Bank Transfer is preferred.
A: 1 to 2 months usually.
A: Yes, but only LC at sight.
A: We have both local and online technical after-salves service provided.
Depending on strong technical capability and rich experience, ZONGDA provides the EPC service to the domestic and international clients and has abundant EPC project experience in China.
