The Scooptram Mining has high protection grade and is suitable for underground mines × In the humid and dusty environment of 5m roadway, the machine is highly intelligent, safe and reliable, has good overall stability, and can greatly improve the productivity and profitability of the mine.
The Scooptram Mining has high protection grade and is suitable for underground mines × In the humid and dusty environment of 5m roadway, the machine is highly intelligent, safe and reliable, has good overall stability, and can greatly improve the productivity and profitability of the mine.
TECHNICAL SPECIFICATION
Internal combustion LHD

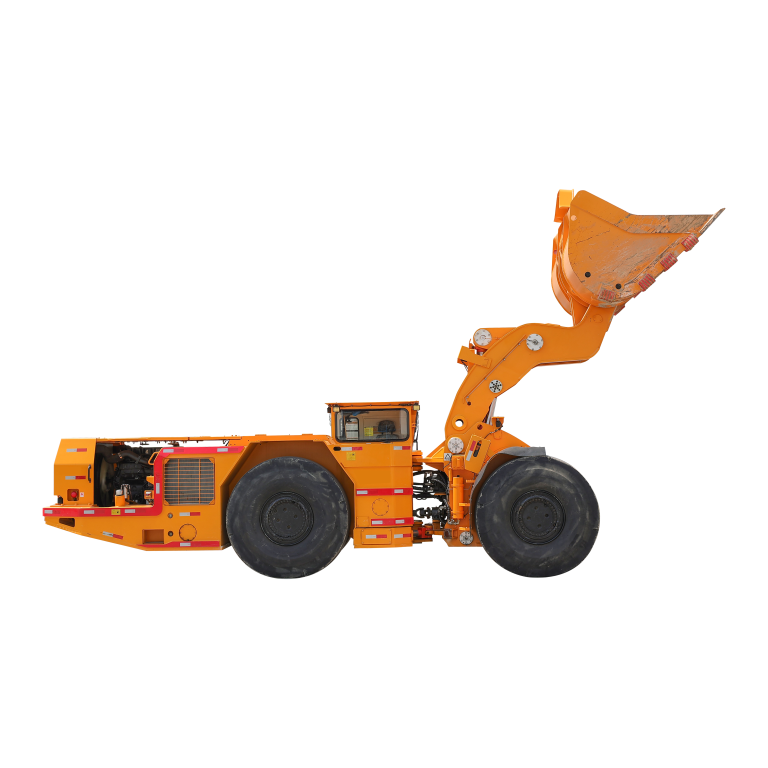

Presentation of ZDL203 Diesel Underground Loader
I. Technical Features
II. TECHNICAL SPECIFICATION
| 1 | Engine Model | YUCHAI YCD4J33T6-110, 81KW, /DEUTZ F6LD914, 86KW | |
| 2 | Torque converter | SHANTUI YJ315LG | |
| 3 | Transmission | HANGZHOU YD13044159 | |
| 4 | Axle | XUZHOU QINGFENG NO SPIN Differential | |
| 5 | Brake | POSI-STOP Spring Applied Hydraulic Released Brak | |
| 6 | Capacity | 1.5m3（SAE Stacking） | |
| 7 | Rated payload | 3t | |
| 8 | Max. lifting height | 3650mm | |
| 9 | Max.unloading height | 1350mm | |
| 10 | Min.unloading distance | 1000mm | |
| 11 | Exhaust purifier | DOC+Silencer | |
| 12 | Max gradeability | 15° | |
| 13 | Ground clearance | 240mm | |
|
14
|
Travel speed |
1st gear 0-4km/h | |
| 2nd gear 0-9km/h | |||
| 3rd gear 0-15km/h | |||
| 15 | Steering angle | ±38° | |
|
16 |
Dimension |
Length | 6800mm |
| Width | 1640mm | ||
| Cab Height | 2000mm | ||

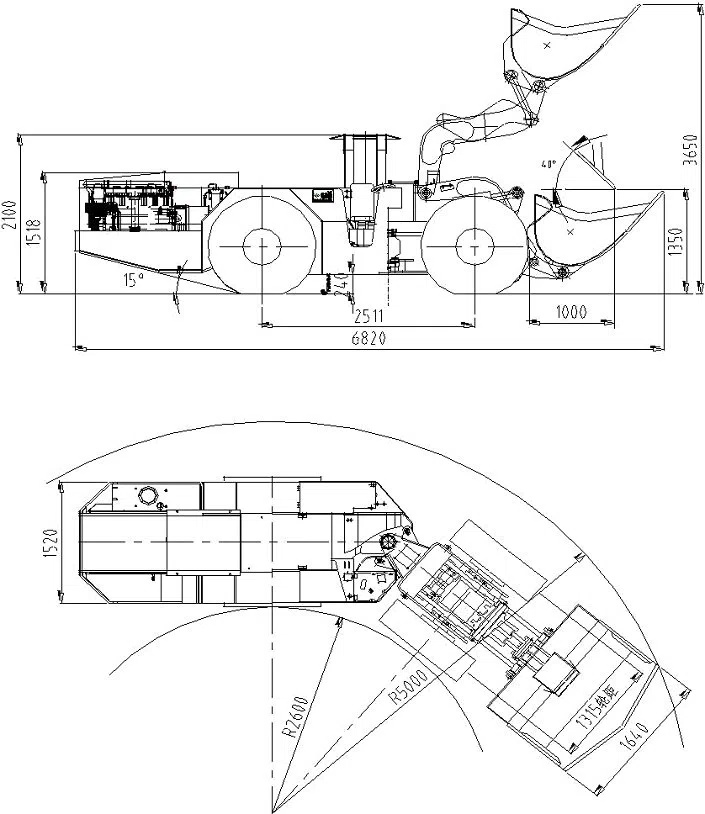

III. OUTER DIMENSIONS OF SCOOPTRAM MINING
QINGDAO ZONGDA MACHINERY CO., LTD is a professional manufacture focusing on research and development, production, sale and service of underground mining machinery, a solution supplier and a mining project contractor in China with strong comprehensive strength and rich experience in mining industry.
We have more than 30 professional and experienced mining experts and engineers and 200 staff for R&D, Production, QC, After Sales Technical Support and etc.
We have fulfilled our commitment to turn knowledge into value by delivering a comprehensive range of integrated equipment and services that cost-effectively transform ore bodies into high grade mineral products for customers.
A: We produce underground mining vehicles and spare parts for metal mines.
A: Yes.
A: Our quotations usually under CIF terms include Freight and Insurance but no Tariffs.
A: 1 or 2 months usually. Yes and there are stock available sometime.
A: Our forwarder partner will arrange the proper transportation solution and can arrange the door-to-door service as well.
A: We have special and detailed warranty policy.
A: Yes.
A: TT Bank Transfer is preferred.
A: 1 to 2 months usually.
A: Yes, but only LC at sight.
A: We have both local and online technical after-salves service provided.
Depending on strong technical capability and rich experience, ZONGDA provides the EPC service to the domestic and international clients and has abundant EPC project experience in China.
