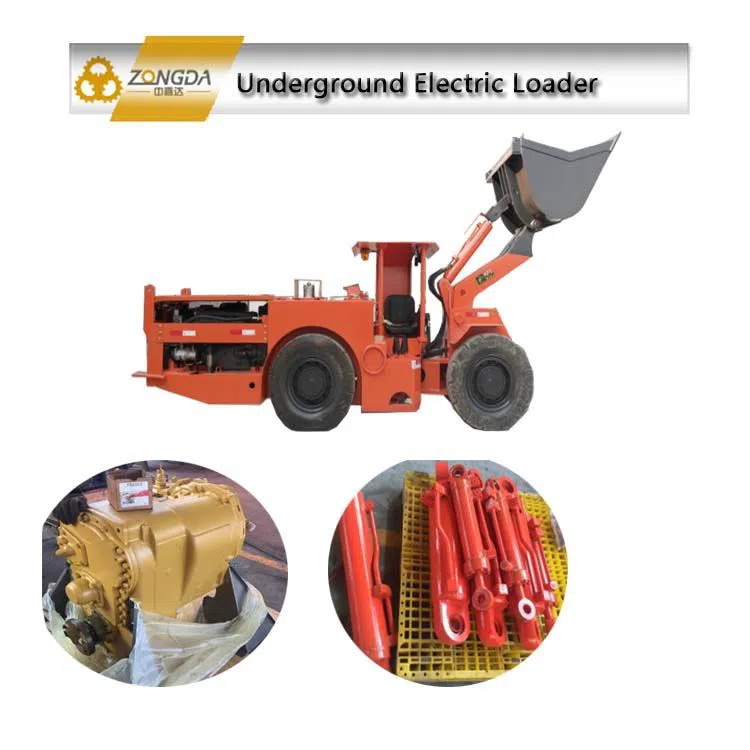

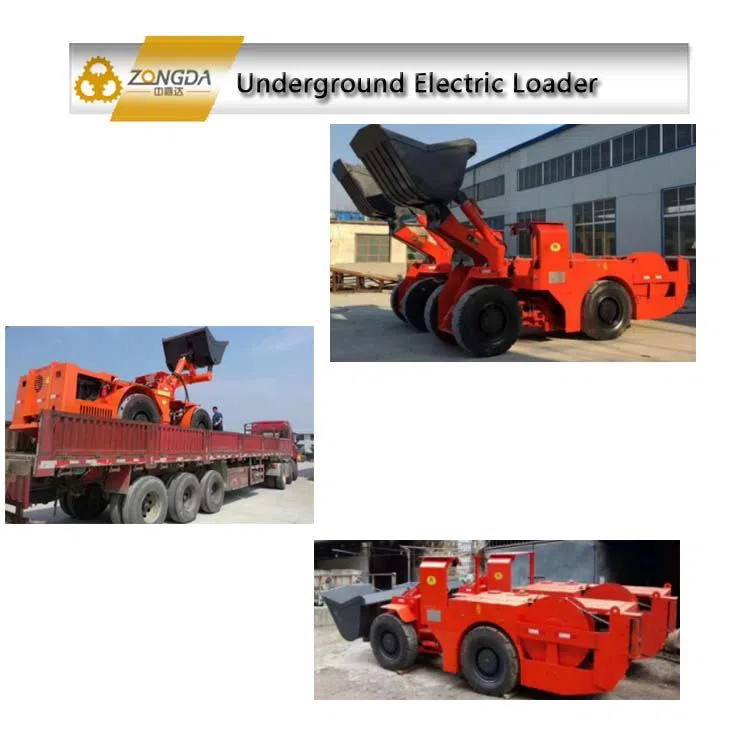

ZONGDA Underground Electric Loader is a kind of Underground LHD developed jointly with scientific research institutes according to the specific situation of underground trackless mining equipment in China and the characteristics of similar models at home and abroad.
ZONGDA Underground Electric Loader is a kind of Underground LHD developed jointly with scientific research institutes according to the specific situation of underground trackless mining equipment in China and the characteristics of similar models at home and abroad.
Technical Data
ZONGDA Underground Electric Loader is a kind of Underground LHD developed jointly with scientific research institutes according to the specific situation of underground trackless mining equipment in China and the characteristics of similar models at home and abroad. This machine is suitable for all kinds of mining methods in small and medium-sized mines, such as mining in and out of the tunnel, construction and leveling of the working site and road, material transportation and other auxiliary operations.
The LHD has reasonable structure, convenient operation, reasonable price and convenient supporting. The machine adopts 380V AC motor as power, hydrostatic mechanical transmission, two-way driving, stepless speed regulation, good traction performance, high production efficiency, hydraulic control, automatic cable retraction and release, and its performance parameters have reached the level of similar foreign models.
Characteristics
◆ The LHD is designed to swing the frame after the slewing ring is connected, which greatly reduces the failure rate.
◆ The traveling system adopts full hydraulic control operation, which makes the traveling system of loader more agile, effectively reduces the failure rate and improves the working efficiency.
◆ The working system adopts the pilot hydraulic control system, which makes the operation simpler and the working system more efficient.
◆ For parking brake, the transmission gearbox with brake friction plate brake, spring brake and hydraulic contact brake are used to make the parking brake safe and reliable.
◆ The bucket adopts the latest V-shape structure of the international underground mining loader, which reduces the resistance of scooping.
Technical Data
| Rated Bucket Capacity | 1m³ | Running Speed | 0-10 m/h |
| Rated Payload | 2T | Min. Clearance | 200mm |
| Max. Breakout Force | 45KN | Max. Steering Angle | ±38° |
| Max. Traction Force | 52KN | Angle of Rear Axle Swing | ±8° |
| Max. Dumping Height | 1080mm | Departure Angle | 15° |
| Max. Gradeability | ≤20° | Type of Tire | 10.00-20 |
| Min. Dumping Height | 860mm | Wheelbase | 2200mm |
| Min. Turning Radius | 4260 ( Outer ) | Electric Engine | 380v |
| 2540 (Inner) | 45kw 50hz | ||
| Outer Dimensions | 6090*1340*2000 mm³ | Operation Weight | 7.2T |
QINGDAO ZONGDA MACHINERY CO., LTD is a professional manufacture focusing on research and development, production, sale and service of underground mining machinery, a solution supplier and a mining project contractor in China with strong comprehensive strength and rich experience in mining industry.
We have more than 30 professional and experienced mining experts and engineers and 200 staff for R&D, Production, QC, After Sales Technical Support and etc.
We have fulfilled our commitment to turn knowledge into value by delivering a comprehensive range of integrated equipment and services that cost-effectively transform ore bodies into high grade mineral products for customers.
A: We produce underground mining vehicles and spare parts for metal mines.
A: Yes.
A: Our quotations usually under CIF terms include Freight and Insurance but no Tariffs.
A: 1 or 2 months usually. Yes and there are stock available sometime.
A: Our forwarder partner will arrange the proper transportation solution and can arrange the door-to-door service as well.
A: We have special and detailed warranty policy.
A: Yes.
A: TT Bank Transfer is preferred.
A: 1 to 2 months usually.
A: Yes, but only LC at sight.
A: We have both local and online technical after-salves service provided.
Depending on strong technical capability and rich experience, ZONGDA provides the EPC service to the domestic and international clients and has abundant EPC project experience in China.
