Understanding Tunnel Ventilation Shafts
Definition and Purpose of Tunnel Ventilation Shafts

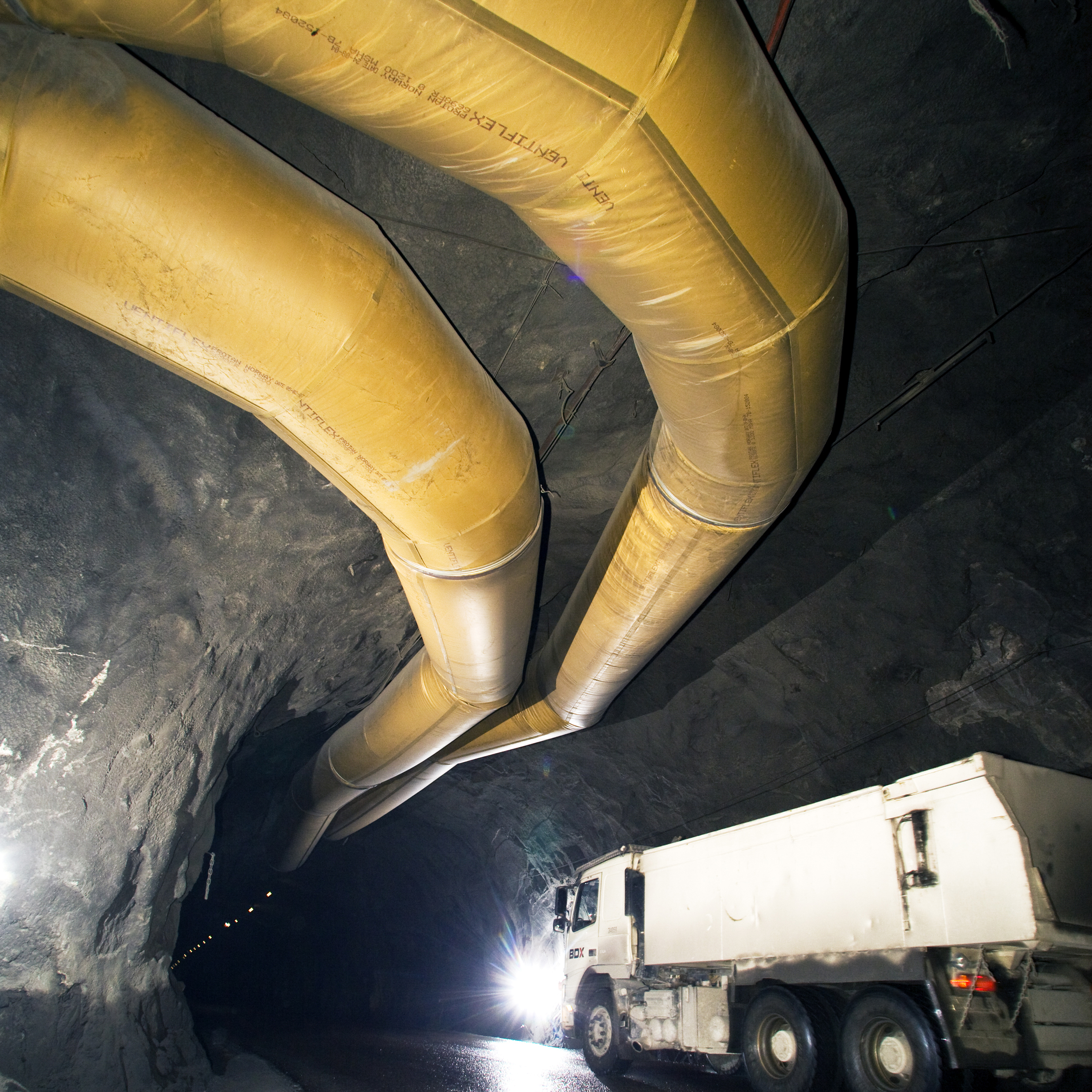

Tunnel ventilation shafts are key in underground mining. They’re upright or slanted passages. They link the surface to tunnels below. Their main job is moving air. They bring in fresh air. They push out bad air. This keeps the air safe and breathable for workers.
Importance of Ventilation in Underground Mining
Ventilation matters a lot in mines. It clears out dangerous gases. Think methane or carbon dioxide. These can build up in tight spaces. Good airflow also controls heat and moisture. It makes work comfier and safer. Tunnels usually stay between -5°C and 40°C. Humidity can hit 85% at 25°C. Plus, ventilation cuts the chance of explosions. Flammable stuff like coal dust or gas can spark trouble.
Components of Tunnel Ventilation Systems
Key Features of Underground Mining Tunnel Ventilation Fans
Fans drive air through mine tunnels. The K series Underground Mining Ventilation Fan is a star. It started back in the 1980s. It’s known for great airflow and saving energy. You can tweak its blade angles. This fits specific needs. It’s quiet too. The motor connects straight to the impeller. That boosts stability and trust.
The K series has options like JK and DJK local fans. There’s also K main fans and DK helpers. They work in places like metal mines, gold mines, chemical plants, and even nuclear sites. Newer models have a steady flow ring. It ramps up efficiency. No performance dips either.
Types of Fans Used in Tunnel Ventilation Systems
Different fans suit different jobs:
- Main Fans: Big units. They push lots of air through main tunnels.
- Auxiliary Fans: Smaller guys. They add airflow where needed.
- Local Fans: Built for small zones. Great during digging or mining tasks.
JK series local fans save power. They’re perfect for tunnels or other air needs.
Materials and Construction of Ventilation Shafts
Ventilation shafts are tough. They’re made to handle rough underground life. Common materials are reinforced concrete and steel linings. These stand up to ground pressure. They resist moisture and chemicals too. Tight seals stop air leaks. This keeps the system running strong.
How Tunnel Ventilation Shafts Work
Mechanism Behind Airflow in Tunnels
Ventilation shafts work by shifting air pressure. Fans create the push or pull. Some force fresh air in. Others suck out dirty air. This swaps air across the whole tunnel setup. It keeps things flowing smoothly.
Role of Axial Fans in Maintaining Air Quality
Axial fans are airflow champs. They move air straight through shafts. Their design cuts drag. It boosts output. The motor links directly to the impeller. That means less upkeep. You can adjust blades too. This tunes airflow to match what’s needed.
Dynamic Balancing and Impeller Adjustments
Balancing fans is a big deal. It stops shakes from uneven parts like impellers. Smooth running lasts longer. It’s safer too. No gear breaks down. Tweaking impellers helps direct air better. You can dial in just the right amount based on the moment.
Applications of Tunnel Ventilation Shafts in Mining
Ensuring Safety in Underground Mining Operations
Safety is everything in mines. Workers face risks like bad air or hot temps. Flammable gases are another worry. Tunnel ventilation shafts help big time. They keep fresh air coming. They clear out stale air. This stops harmful gases like methane from piling up. Tunnels stay between -5°C and 40°C. Humidity hits up to 85% at 25°C. Ventilation keeps those in check too. It makes work safer and nicer.
Ventilation also guards against explosions. Coal dust or gas can ignite. Rules say don’t use these systems near flammable stuff. By clearing those dangers, shafts make mining much safer.
Managing Hazardous Gases and Dust Particles
Mines kick up dust and gases. These can hurt workers’ lungs if not handled. Ventilation shafts fix this. They create steady airflow. It grabs dust and toxins. It pulls them out. JK series mining local fans shine here. They’re great for digging zones or small air tasks. They meet safety rules. They protect folks from breathing bad stuff.
Modern systems have cool perks. Adjustable blades tweak performance. They’re quiet too. The K series Underground Mining Ventilation Fan is a prime pick. It’s efficient and saves power.
Optimizing Air Circulation for Worker Efficiency
Good air isn’t just safe. It keeps workers sharp. Bad ventilation makes people tired. It fogs their focus. Heat stress creeps in too. Tunnel ventilation shafts solve this. They pump in oxygen-rich air. They clear out heat from machines and bodies.
Fans adjust on the fly. Dynamic balancing keeps them smooth. Impeller tweaks guide air where it’s needed. This creates a great work vibe. It doesn’t matter how big or tricky the mine is.
Selecting the Right Tunnel Ventilation Shaft for Your Needs
Factors to Consider: Speed, Material, and Mounting Type
Picking the right shaft takes thought. Here’s what to weigh:
- Speed: How fast air moves matters. High-speed fans work for big jobs needing lots of flow.
- Material: Shafts need tough stuff. Reinforced concrete or steel linings handle rough conditions. Seals stop leaks.
- Mounting Type: Setup must fit the site. K series fans link motor to impeller directly. It’s stable and simple to install.
Think about the environment too. Altitude shifts things. Temps range from -5°C to 40°C. Humidity can hit 85%. Plan for those.
Importance of Dynamic Testing and Quality Assurance
Testing shafts is a must. Dynamic tests check parts like impellers in action. They spot balance issues or weak spots. Balancing cuts shakes. It makes gear last longer. It keeps things safe.
Quality checks lock in high standards. They cover strength, energy use, and safety. Regular upkeep keeps it all running right over time.
Frequently Asked Questions (FAQs)
What is an underground mining tunnel ventilation system?
It’s a setup to move air in tunnels. It brings fresh air. It clears out bad gases.
Why are K series fans widely used in mining operations?
They’re super efficient. They save energy. They’re quiet with adjustable blades. They’re built to last.
How do tunnel ventilation shafts improve worker safety?
They push out gases like methane. They keep air breathable and safe.
What factors should be considered when selecting a tunnel ventilation shaft?
Look at speed and materials like concrete or steel. Check mounting style. Think about temps (-5°C to 40°C), humidity (up to 85%), and altitude.
To learn about custom options from QINGDAO ZONGDA MACHINERY CO., LTD., reach out today!
