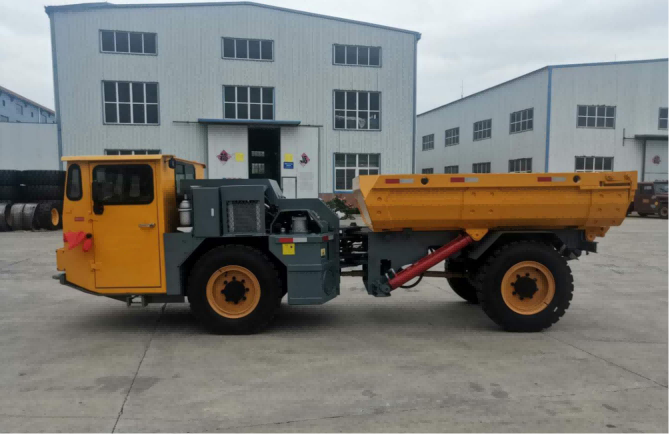

ZDT105 Underground Mining Truck – Heavy‑Duty Articulated Dump Truck for Medium‑Large Underground Metal
ZDT105 Underground Mining Truck – Heavy‑Duty Articulated Dump Truck for Medium‑Large Underground Metal

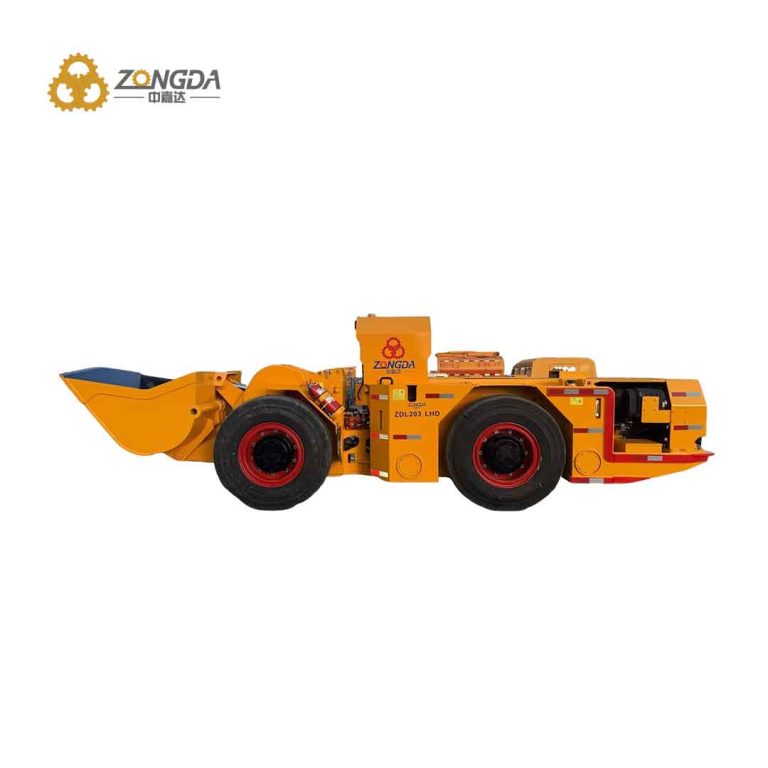

Technical DATA ZONGDA ZDL203BH Underground Mobile Breaker, Mini 1.5m3 LHD with Exchangeable Korean GB GBN70T Hydraulic Breaker Hammer ZDL203BH Underground Loader: Enhancing Trackless Mining Efficiency The ZDL203BH underground loader is purpose-built for underground mines, specifically designed to improve operational efficiency in conjunction with mining trucks during excavation and mining operations. Here are its key features: 1.Technical Characteristics: oPower System: Equipped with a Deutz air-cooled engine. oTransmission: Utilizes a gearbox and torque converter. oBraking System: Driving Brake: Wet multi-disc spring brake with hydraulic release. Parking Brake: Spring brake on the drive axle. oFrame: Centrally hinged structure for improved adhesion performance. oSteering: Hydraulic power steering with a single steering cylinder. 2.Performance Highlights: oDiesel Engine: Powered by a reliable diesel engine. oFour-Wheel Drive: Ensures traction and maneuverability. oLateral Driving: Allows flexibility in tight spaces. oCentral Articulated Hydraulic Steering: Large steering angle for precise control. oSmall Turning Radius: Ideal for medium section tunnel operations. 3.Safety Measures: oSafety Gear: Operators must wear safety helmets, carry self-rescue devices, and use mining lamps when entering the well. oRegular Maintenance: Regular inspections and prompt addressing of hidden dangers. oNo Maintenance During Operation: Strictly prohibited to conduct maintenance while the machine is running. oSafety During Welding/Cutting: Confirm absence of flammable or explosive materials before maintenance. oExhaust Pipe Precautions: Avoid physical contact with the hot exhaust pipe. oHydraulic System Maintenance: Pressure must be relieved before starting any repairs. The ZDL203BH loader plays a crucial role in achieving efficient and safe trackless mining operations. Usage Conditions for the ZDL203BH Underground Loader 1.Tunnel Specifications: oSuitable for tunnels with a cross-sectional size of 2.5 meters (height) × 2.5 meters (width) and above. oRequires a firm top plate. oMinimum turning radius of ≥ 4.3 meters on the outside. oRoad slope should be ≤ 14°. oAdequate ventilation and drainage in the workplace. 2.Environmental Factors: oAmbient temperature within the tunnel: -5°C to 40°C. oMaximum relative humidity (at 25°C): Not more than 85%. oAltitude of usage location: Not exceeding 1000 meters. oIn high-altitude areas (above 1000 meters), power reduction is required for operation. 3.Fuel Requirements: oThe sulfur content of the fuel used in this machine must not exceed 0.2%. 4.Safety Precautions: oStrictly prohibited in places with flammable and explosive gases (such as gas and coal dust). Ensure compliance with these conditions for safe and efficient operation of the ZDL203BH underground loader. TECHNICAL DRAWING AND DIMENSIONS: ZDL203BH Underground Loader: Technical Specifications 1. Overall Dimensions Rated Load: 3000 kg Overall Length: 6820 mm/ 7135mm Whole Machine Width: 1640 mm/1540mm Overall Height (including driver’s cab): 2100 mm/2150mm Bucket Capacity (SAE): 1.5 m³ Unloading Angle: 40° Wheelbase: 2511 mm Minimum Ground Clearance: ≥ 240 mm Departure Angle: 14° 2. Machine Weight Empty Weight: 10800 kg ± 300 kg Full Load Weight: 13800 kg ± 300 kg 3. Operating Capacity Travel Speed (Gears): oFirst Gear: 5 km/h oSecond Gear: 9 km/h oThird Gear: 19 km/h oFourth Gear: 20 km/h Climbing Ability: 14° Maximum Traction Force: ≥ 80 kN Maximum Shovel Force (SAE): ≥ 70 kN 4. Fuel and Hydraulic Tanks Fuel Tank Capacity: 130 L Hydraulic Oil Tank Capacity: 130 L 5. Steering Central Articulated Hydraulic Power Steering Minimum Turning Radius: oInside: 2600/2630 ± 200 mm oOuter: 5000/4650 ± 200 mm Main Configuration 1. Engine Manufacturing Plant: Deutz Model: F6L914 Type: Air-cooled diesel engine, Non turbocharger Rated Power: 79 kW at 2300 rpm 2. Hydraulic Torque Converter Model: YJ315, Chinese Equivalent Model of DANA 272 3. Transmission Model: YD13 644 159A, Chinese Equivalent Model of DANA 20000 series 4. Drive Axle Model: CY1.5, MEITONG Type: Rigid planetary drive axle with NO SPIN differential 5. Hydraulic System Work Brake: Wet multi-disc brake with spring applied and hydraulic release Parking Brake: Spring applied, hydraulic released Multi-Way Valve: Oil force Gear Pump: PERMCO
ZDL203BH Underground Mobile Breaker, Mini 1.5m3 LHD
ZDFL‑0.5 Personnel and Material Carrier – Compact 0.5‑Ton Underground Utility Vehicle
ZDFL‑0.5 Personnel and Material Carrier – Compact 0.5‑Ton Underground Utility Vehicle

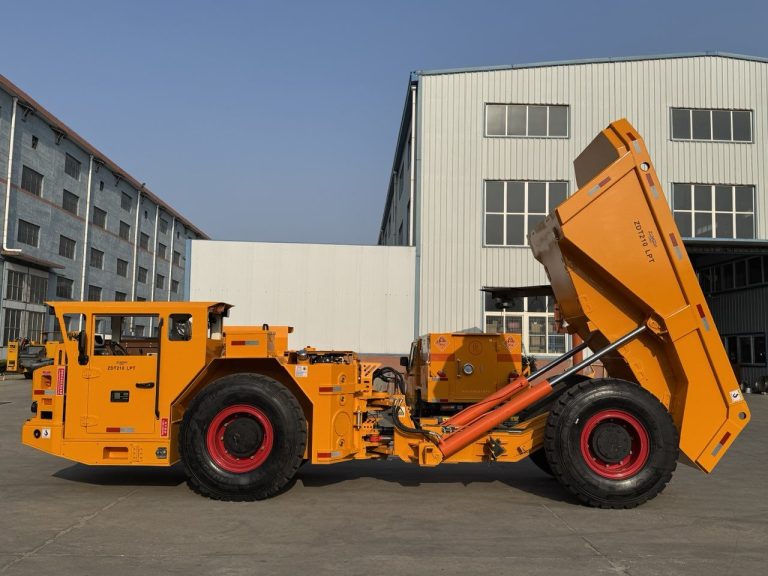

ZDT210 Heavy Duty Underground Mining Truck Efficient Underground Dump Truck for Mine Site Material Transport
ZDT210 Underground Mining Truck High Performance Underground Dump Truck

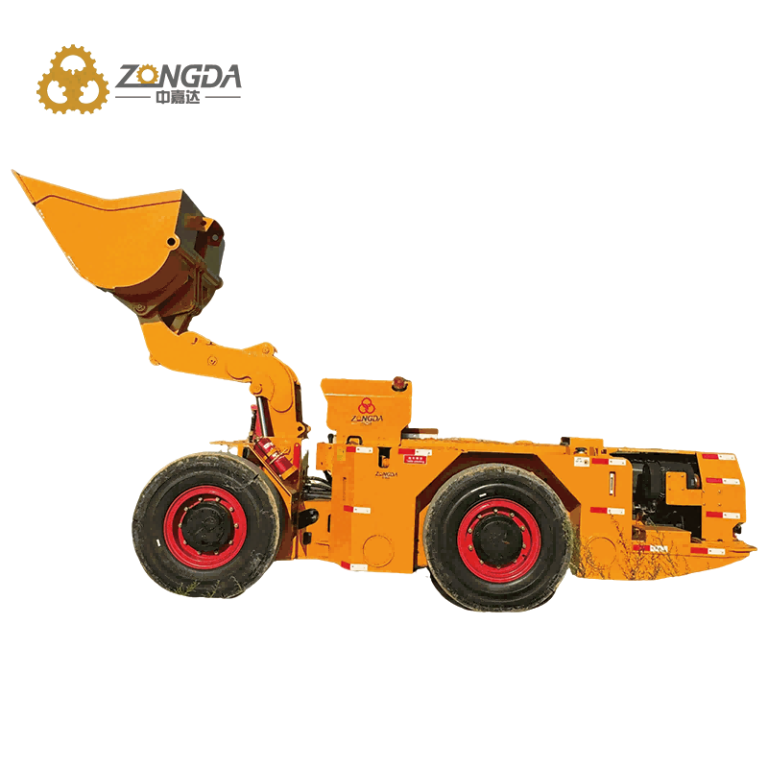

TECHNICAL DATA ZONGDA ZDL202 Compact Underground Loader for Small-Scale Underground Mine Ore & Waste Rock Loading Operations
ZDL202 Compact Underground Loader for Small-Scale Underground Mine Ore & Waste Rock Loading Operations
Underground LHD Loader
