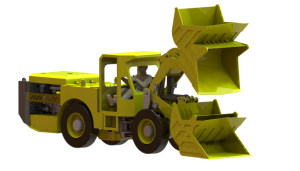

Mechanical Transsmission Mini Loader

Underground Mining Loader

Share on facebook
Share on twitter
Share on linkedin

Mechanical Transsmission Mini Loader

Product Details

Features and Advantages:

  1.  Power system adopts Cummins or Deutz with lower emissions.
  2.  Oscillation by means of slewing Frame, hydraulic steering, rear axle swing compared to traditional forms safer.
  3. Drivetrain system uses hydraulic torque converter, power shift transmission, and improve reliability.
  4. Operating system adopts pilot control, making the operation more simple work, work more efficiently.

5.Service brake is a spring applied, hydraulic release, and is equipped with an emergency braking system, the brake is safe and reliable.

  1. Exhaust system is equipped with imported purifier water filtration system, greatly reducing air pollution.
  2. Adopt 9.75-18 puncture resistant smooth rubber tires,
  3. The machine can be shoveling, loading, transport, unloading one operation, compact structure, convenient operation, high efficiency operation for recovery of mines and tunneling mucking, and workplace and road construction formation, transport of materials and other auxiliary operations.

9.Z-bar linkage for higher rollback force and faster bucket articulation.

Model ZDL202
Main specifications
Bucket volume (m3 ) 1.0
Rated load (t) 2.0
Weight (t) 7.0
Lifting time of the arms (s) ≤4
The sum of three items(s) ≤8
Forward gear(km/h) I 0-5.8  II 0-9.5
Reverse gear I 0-5.8  II 0-9.5
Max. climbing gradient 20°
Dimensions
Overall dimension
(L×W×H mm)
6045×1300×2000
Wheel base (mm) 2250
Wheel tread(mm) 1250
Max. dumping height(mm) 1230
Dumping reach (mm) 860
Diesel engine
Engine model LR4A3Z-22/
CUMMINS 4BTA3.9-C80
Engine type In-line,water-cooling,
4-strokec,4 cylinders,
direct-injection
Rated power(kw) 56Kw
Rated speed (r/min) 2400
Total exhaust of cylinder(L) 4.2/3.9
Type of starting Electric start
Transmission system
Type of Method Hydro-static Solution
Model Axle :N/A Flexible clutch
Configuration Hydro-static Pump: Linder or Rexroth 55 VP
Type or Method Variable Motor
Model Gear Box WG2BS Viable Motor or Fixed Motor M55
Type Stepless
Axle and tire XCMG Axle QY10 or XCMG QY15B @ SAHR brakes
Type of main reducer Spiral bevel gear,single stage
Type of final reducer Single stage planetary
Size of tire 9.75-18
Working device of hydraulic system
Model of working pump CBG2063
Nminal displacement(ml/r) 63
Rated pressure(Mpa) 16
Multi-way directional valve ZL20
Pressure(Mpa) 17
Rated flow(L/min) 100
Steering system
Type Load-sensing hydraulic steering
Displacement(ml/r) 250
