12ton Underground Mining Dump Truck (KU-12)

Share on facebook
Share on twitter
Share on linkedin

Rated load of 20t, suitable for ≥4.5×4.5m tunnel. Adopt Central articulated frame

12ton Underground Mining Dump Truck (KU-12)

Share on facebook
Share on twitter
Share on linkedin

Rated load of 20t, suitable for ≥4.5×4.5m tunnel. Adopt Central articulated frame

Product Details

As one of the company’s main products, Flameproof Underground mining Loco, Flameproof Underground Shotcrete Spraying Machine, Material Air Cannons has obvious price advantages over peers, and cultivated a group of old customers who support each other, which makes our sales continue to rise and become stable. You may find the lowest price here. Our sales service network is all over the world to ensure that the goods are delivered to customers in the shortest time.

ZDDK-20 Features

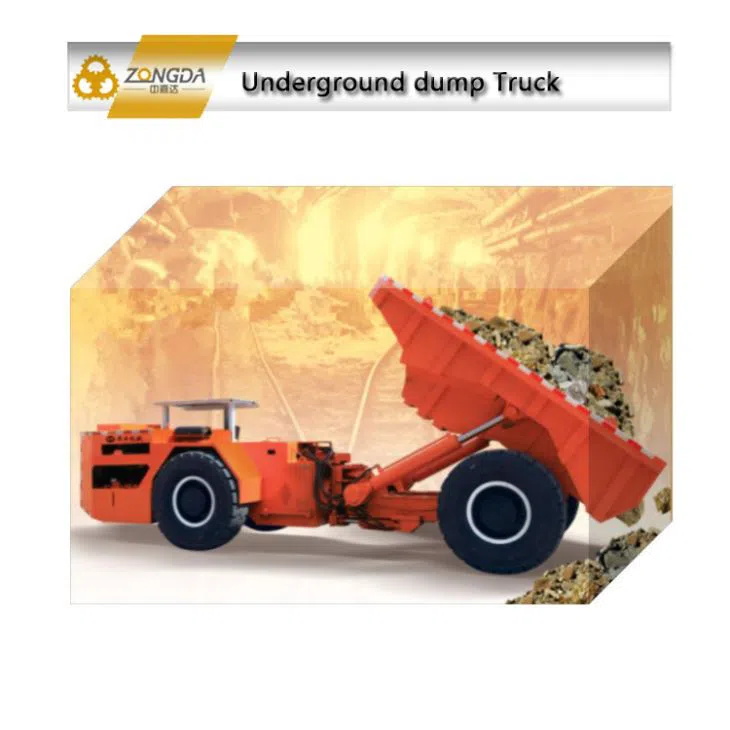

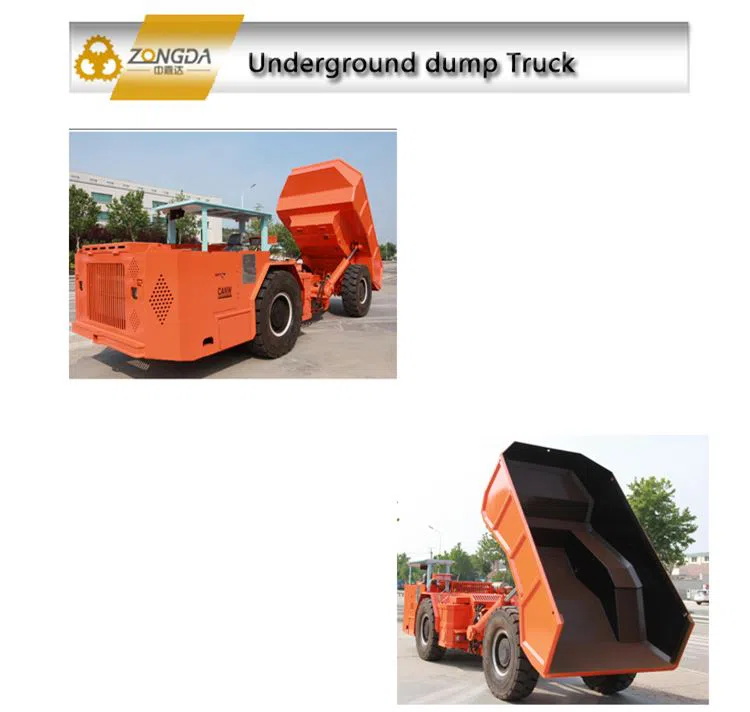

Underground dump Truck

Rated load of 20t, suitable for ≥4.5×4.5m tunnel

Adopt Central articulated frame

Double cylinder lifting for the bucket

The vehicle adopts the full hydraulic control system, which well ensures the safety, comfort and durability of the control.

Parameter and specification of standard model

Dimension 9050(±100)mm×2280(±50)mm×2400(±50)mm
Engine DEUTZ F12L413FW /204kW(VOLVO TAD853VE/ 235KW optional)
Torque converter DANA C5000
Transmission DANA R36000
Drive axle KESSLER Germany
Bucket 10m³
Rated Load 20t
Unload weight 20.8t
Climbing Capacity 15°
Min.Ground Clearance 340mm
Speed 0-30.9km/h
Turning Angle ±42°
Joint angle ±8°
Min.Steering Radius 5105(±50)mm(inside)
8275(±50)mm(outside)

We pursue excellence, strive for perfection in every one of your products, be meticulous and provide you with the best 12ton Underground Mining Dump Truck (KU-12). In order to enable users to enjoy complete supporting services, perfect technical consultation and perfect after-sales service, our products and services have been continuously upgraded over the years, which has received unanimous praise! Being customer-centric, we have implemented a quick, efficient and comprehensive response system to serve customers within 24 hours.
