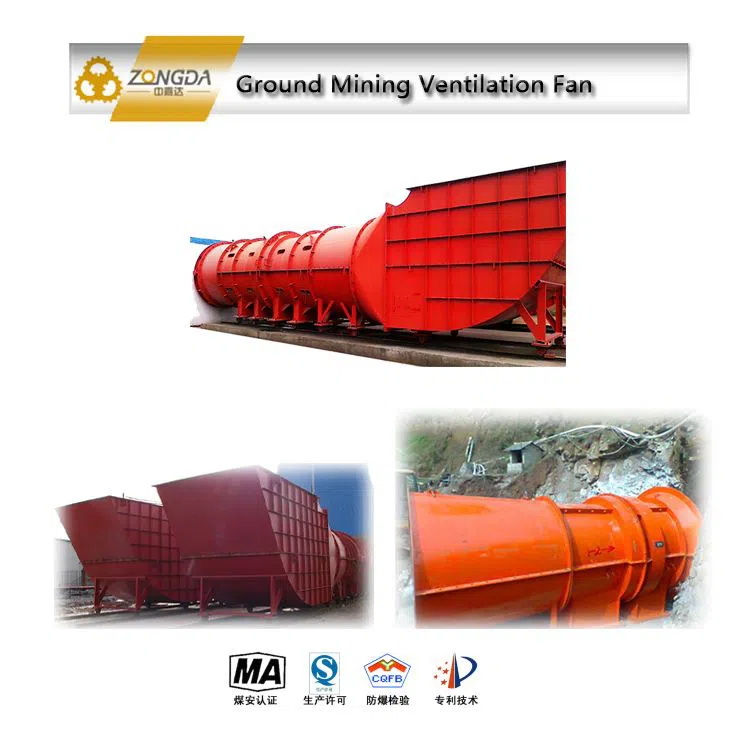

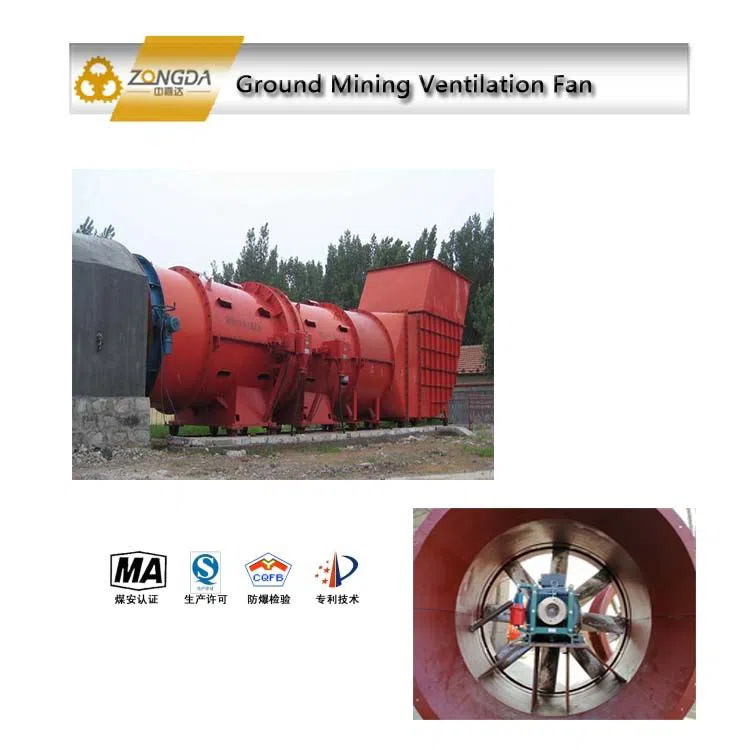

DK series ground mining ventilation fan

It can be divided into explosion-proof type and non explosion-proof type. It has the advantages of high efficiency, energy saving and low noise. The highest static pressure efficiency of the product is more than 86%, which has reached the leading level of the main fan for mining in China. The material used for the fan has passed the friction spark test of the testing center of Chongqing Branch of Chinese Academy of Coal Sciences, and has reached the explosion-proof requirements. The explosion-proof performance of the whole fan has passed the explosion-proof test of the national explosion-proof electrical product quality testing center.

Characteristic

1. In order to meet the resistance requirements of the coal mine ventilation network and ensure the efficiency of the ventilator, the counter rotating structure is adopted for the ventilator, that is, two fans of the same model are connected together, and the impellers of the two fans rotate in the opposite direction, so the middle guide vane can be omitted and the loss of the middle guide vane can be reduced, and the efficiency is improved.

The traditional structure of the long shaft or belt pulley drive of the main fan of the mine is changed by the form of direct connection of the motor and the impeller, which avoids the damage accident of the drive device, eliminates the energy loss of the drive device, and improves the efficiency of the fan device. Because of its simple structure, except for regular oil filling of motor bearings, it generally does not need maintenance and can run continuously for a long time.

3. When the motor power of this series of fans is less than 200kW, YBF series explosion-proof motors with voltage of 380V, 660V or 1140V of Yb series derivative series shall be matched; when the power is more than 200kW, YBF series 6000V high-voltage explosion-proof energy-saving motors can be matched according to the needs of the mine. The motor is installed in the airtight cover in the main air duct. The airtight cover has certain pressure resistance, which can insulate the motor from the gas contained in the fan flow passage, and also play a role in heat dissipation. The airtight cover is equipped with two rows of streamline air pipes, which are connected with the ground air through the main air duct, so that the fresh air can flow into the airtight cover, and at the same time, the air in the cover can run in the fan Maintain positive pressure in. Due to the adoption of various technical measures in the design, the motor always works under the condition that the gas concentration is less than 1%, which meets the requirements of safety and explosion-proof.

4. The highest static pressure efficiency of this series of fans can reach 86%, the high efficiency area is wide, the static pressure efficiency is more than 70% of the working area, which can ensure that the main fan efficiency of the mine is more than 75% in three mining stages, reverse the low operating efficiency of the main fan of large mines in China, and save a lot of electric energy.

5. A steady flow ring is installed in the main air duct. The performance curve of the fan has no hump and surge, and it can operate stably under any resistance condition. The noise is low. The noise of most models of this product is less than 90dB (a) without muffler. If the user has more strict requirements on noise, the factory can be equipped with muffler.

6. All blades of this series of fans can be adjusted or one of them can be operated independently, so the adjustable range is extremely wide. In the initial stage of mine operation, only the primary fan can be operated.

7. The fan of this series has stable operation and small vibration. Both the fan and the diffuser are installed on the flat car with wheels, which can operate continuously for a long time.

8. The fan can be reversed. Under various working conditions, the reverse air rate is more than 60%. There is no need for the reverse air duct, only a simple ventilation room and electric control duty room need to be built. It can save a lot of capital construction investment.

9. The side moving fan adopts the side moving structure, that is, two main engines are parallel mounted on a flat car that can move back and forth laterally, two main engines alternately use only one return air channel, and the flat car is pulled by a small winch with double circuit power supply. When the working fan needs to be overhauled, first open the sealing belt at both ends of the main engine, then pull out the positioning pin of the flat car, then start the small winch to move the standby fan to the working position, and then start the whole process of the standby fan operation, which can be completed within 5 minutes by only one person, fully meeting the provisions of the coal mine safety regulations.

Model and matching motor power determination

Generally, the fan model should be selected according to the most difficult ventilation period in each stage of mining. At the same time, we should also consider that in the initial stage of mining, when the negative pressure is low and the air volume is small, we should also obtain more than 70% of the operating static pressure efficiency. Only in this way can we give full play to the efficient and energy-saving function of DK series fans.

For the mine whose ventilation network parameters differ greatly in the three stages of mining, only one stage of DK series fan can be operated at the initial stage of mining, and the other stage can be used as standby.

Generally, when DK series fans are selected according to the three stages of mining, the operating efficiency of each stage should be over 75%, and the most difficult period should be over 80%. If the fan with the above operating efficiency cannot be found in the sample, you can contact our factory to adjust the parameters of the fan to meet the above conditions.

Technical parameters
TYPE Mine safety Certificate speed of revolution (r/min) Power(kW) CAPACITY m3/s Pressure(Pa)
DK62-6 FBCDZNo12/2×22 980 2×22 7.4~18.7 515~1494
DK62-6 FBCDZNo13/2×30 980 2×30 8.1~23 792~2300
DK62-6 FBCDZNo13/2×37 980 2×37 8~25.4 792~2490
DK62-6 FBCDZNo14/2×37 980 2×37 10.1~26 918~2550
DK62-6 FBCDZNo14/2×55 980 2×55 10.1~31.7 918~2888
DK62-6 FBCDZNo15/2×75 980 2×75 12.4~39.0 1054~3315
DK62-6 FBCDZNo16/2×110 980 2×110 15.0~47.3 1199~3772
DK62-6 FBCDZNo17/2×132 980 2×132 18.0~56.8 1353~4258
DK62-6 FBCDZNo18/2×185 980 2×185 21.4~67.4 1517~4774
DK62-6 FBCDZNo19/2×220 980 2×220 25.1~79.3 1690~5319
DK62-6 FBCDZNo20/2×250 980 2×250 29.3~92.5 1873~5893
DK62-6 FBCDZNo21/2×355 980 2×355 33.9~107.0 2065~6497
DK62-8 FBCDZNo17/2×55 740 2×55 13.6~42.9 772~2428
DK62-8 FBCDZNo18/2×75 740 2×75 16.1~50.9 865~2722
DK62-8 FBCDZNo19/2×110 740 2×110 19.0~60.0 964~3033
DK62-8 FBCDZNo20/2×132 740 2×132 22.1~69.8 1068~3360
DK62-8 FBCDZNo21/2×160 740 2×160 25.6~80.8 1177~3705
DK62-8 FBCDZNo22/2×200 740 2×200 29.5~92.9 1292~4066
DK62-8 FBCDZNo23/2×250 740 2×250 33.7~106.2 1412~4444
DK62-8 FBCDZNo24/2×315 740 2×315 38.2~120.7 1538~4839
DK62-8 FBCDZNo25/2×315 740 2×315 43.2~136.4 1669~5250
DK62-8 FBCDZNo26/2×450 740 2×450 48.6~153.4 1805~5679
DK62-8 FBCDZNo27/2×450 740 2×450 54.4~171.8 1946~6124
DK62-8 FBCDZNo28/2×710 740 2×710 60.7~191.6 2093~6586
DK62-10 FBCDZNo20/2×75 590 2×75 17.6~55.7 679~2136
DK62-10 FBCDZNo21/2×90 590 2×90 20.4~64.4 748~2355
DK62-10 FBCDZNo22/2×110 590 2×110 23.5~74.1 821~2585
DK62-10 FBCDZNo23/2×132 590 2×132 26.8~84.7 898~2825
DK62-10 FBCDZNo24/2×160 590 2×160 30.5~96.2 978~3076
DK62-10 FBCDZNo25/2×185 590 2×185 34.5~108.7 1061~3338
DK62-10 FBCDZNo26/2×250 590 2×250 38.8~122.3 1147~3610
DK62-10 FBCDZNo27/2×250 590 2×250 43.4~137.0 1237~3893
DK62-10 FBCDZNo28/2×315 590 2×315 48.4~152.8 1331~4187
DK62-10 FBCDZNo29/2×355 590 2×355 53.8~169.7 1427~4491
DK62-10 FBCDZNo30/2×450 590 2×450 59.5~187.9 1527~4806
DK62-10 FKCDZNo32/2×560 590 2×560 72.3~228.0 1738~5468
DK62-10 FKCDZNo33/2×800 590 2×800 86.7~273.4 1962~6173
DK62-10 FKCDZNo36/2×1000 590 2×1000 102.9~324.7 2199~6921
DK62-12 FBCDZNo24/2×110 490 2×110 25.3~79.9 674~2122
DK62-12 FBCDZNo25/2×110 490 2×110 28.6~90.3 732~2302
DK62-12 FBCDZNo26/2×132 490 2×132 32.2~101.6 791~2490
DK62-12 FBCDZNo27/2×160 490 2×160 36.1~113.8 853~2685
DK62-12 FBCDZNo28/2×200 490 2×200 40.2~126.9 918~2888
DK62-12 FBCDZNo29/2×200 490 2×200 44.7~140.9 985~3098
DK62-12 FBCDZNo30/2×250 490 2×250 49.5~156.0 1054~3315
DK62-12 FKCDZNoNo32/2×355 490 2×355 60.0~189.4 1199~3772
DK62-12 FKCDZNo34/2×450 490 2×450 72.0~227.1 1353~4258
DK62-12 FKCDZNo36/2×560 490 2×560 85.5~269.6 1517~4774
DK62-12 FKCDZNo38/2×800 490 2×800 100.5~317.1 1690~5319
DK62-12 FKCDZNo40/2×1000 490 2×1000 171.2~370.0 1873~5893
DK62-6 FBCDZNo15/2×55 980 2×55 14.5~36.6 805~2335
DK62-6 FBCDZNo16/2×75 980 2×75 17.6~44.4 916~2656
DK62-6 FBCDZNo17/2×90 980 2×90 21.1~53.3 1035~2999
DK62-6 FBCDZNo18/2×132 980 2×132 25.0~63.3 1160~3362
DK62-6 FBCDZNo19/2×160 980 2×160 29.4~74.4 1292~3746
DK62-6 FBCDZNo20/2×220 980 2×220 34.3~86.8 1432~4150
DK62-6 FBCDZNo21/2×280 980 2×280 39.7~100.5 1579~4576
DK62-8 FBCDZNo18/2×22 740 2×55 18.9~47.8 661~1917
DK62-8 FBCDZNo19/2×75 740 2×75 22.2~56.2 737~2136
DK62-8 FBCDZNo20/2×90 740 2×90 25.9~65.5 816~2367
DK62-8 FBCDZNo21/2×132 740 2×132 30.0~75.9 900~2609
DK62-8 FBCDZNo22/2×160 740 2×160 34.5~87.2 988~2863
DK62-8 FBCDZNo23/2×185 740 2×185 39.4~99.7 1080~3130
DK62-8 FBCDZNo24/2×220 740 2×220 44.8~I13.2 1176~3408
DK62-8 FBCDZNo25/2×280 740 2×280 50.6~128.0 1276~3698
DK62-8 FBCDZNo26/2×355 740 2×355 56.9~144.0 1380~3999
DK62-8 FBCDZNo27/2×355 740 2×355 63.7~161.0 1488~4313
DK62-8 FBCDZNo28/2×450 740 2×450 71.1~179.8 1600~4638
DK62-10 FBCDZNo21/2×75 590 2×75 23.9~60.5 572~1659
DK62-10 FBCDZNo22/2×75 590 2×75 27.5~69.5 628~1820
DK62-10 FBCDZNo23/2×90 590 2×90 31.4~79.5 686~1990
DK62-10 FBCDZNo24/2×110 590 2×110 35.7~90.3 747~2166
DK62-10 FBCDZNo25/2×160 590 2×160 40.3~102.1 811~2351
DK62-10 FBCDZNo26/2×185 590 2×185 45.4~114.8 877~2542
DK62-10 FBCDZNo27/2×200 590 2×200 50.8~128.6 946~2742
DK62-10 FBCDZNo28/2×250 590 2×250 56.7~143.4 1017~2949
DK62-10 FBCDZNo29/2×250 590 2×250 63.0~159.3 1091~3163
DK62-10 FBCDZNo30/2×315 590 2×315 69.7~176.4 1168~3385
DK62-10 FKCDZNo32/2×450 590 2×450 84.6~214.0 1329~385J
DK62-10 FKCDZNo34/2×560 590 2×560 101.5~256.7 1500~4348
DK62-10 FKCDZNo36/2×710 590 2×710 120.4~304.7 1682~4874
DK62-12 FBCDZNo25/2×110 490 2×110 33.5~84.8 559~1621
DK62-12 FBCDZNo26/2×110 490 2×110 37.7~95.3 605~1754
DK62-12 FBCDZNo27/2×132 490 2×132 42.2~106.8 652~1891
DK62-12 FBCDZNo28/2×160 490 2×160 47.1~119.1 702~2034
DK62-12 FBCDZNo29/2×160 490 2×160 52.3~132.3 753~2182
DK62-12 FBCDZNo30/2×200 490 2×200 57.9~146.5 806~2335
DK62-12 FKCDZNo32/2×250 490 2×250 70.3~177.7 916~2656
DK62-12 FKCDZNo34/2×315 490 2×315 84.3~213.2 1035~2999
DK62-12 FKCDZNo36/2×450 490 2×450 100.0~253.1 1160~3362
DK62-12 FKCDZNo38/2×560 490 2×560 117.6~297.6 1292~3746
DK62-12 FKCDZNo40/2×710 490 2×710 137.2~347.2 1432~4150
DK62-12 FKCDZNo42/2×1000 490 2×1000 158.8~401.9 1579~4576
DK62-12 FKCDZNo44/2×1250 490 2×1250 182.6~462.1 1733~5022
