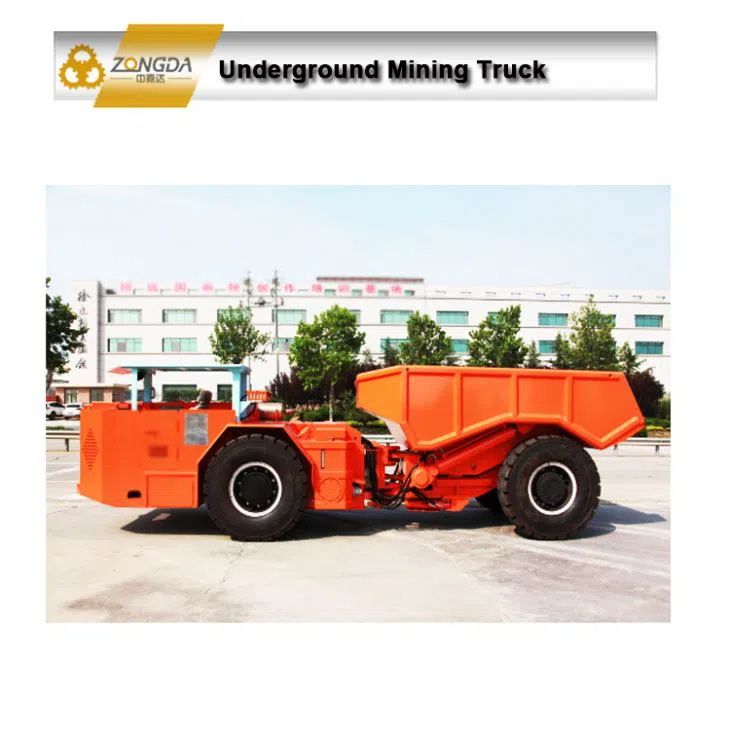

Features
Rated load of 20t, suitable for ≥4.5×4.5m tunnel
Adopt Central articulated frame
Double cylinder lifting for the bucket
The vehicle adopts the full hydraulic control system, which well ensures the safety, comfort and durability of the control.
Technical Data
| Dimension | 9050（±100）mm×2280（±50）mm×2400（±50）mm |
| Engine | DEUTZ F12L413FW /204kW（VOLVO TAD853VE/ 235KW optional） |
| Torque converter | DANA C5000 |
| Transmission | DANA R36000 |
| Drive axle | KESSLER Germany |
| Bucket | 10m³ |
| Rated Load | 20t |
| Unload weight | 20.8t |
| Climbing Capacity | 15° |
| Min.Ground Clearance | 340mm |
| Speed | 0-30.9km/h |
| Turning Angle | ±42° |
| Joint angle | ±8° |
| Min.Steering Radius | 5105（±50）mm(inside) |
| 8275（±50）mm(outside) |
QINGDAO ZONGDA MACHINERY CO., LTD is a professional manufacture focusing on research and development, production, sale and service of underground mining machinery, a solution supplier and a mining project contractor in China with strong comprehensive strength and rich experience in mining industry.
We have more than 30 professional and experienced mining experts and engineers and 200 staff for R&D, Production, QC, After Sales Technical Support and etc.
We have fulfilled our commitment to turn knowledge into value by delivering a comprehensive range of integrated equipment and services that cost-effectively transform ore bodies into high grade mineral products for customers.
A: We produce underground mining vehicles and spare parts for metal mines.
A: Yes.
A: Our quotations usually under CIF terms include Freight and Insurance but no Tariffs.
A: 1 or 2 months usually. Yes and there are stock available sometime.
A: Our forwarder partner will arrange the proper transportation solution and can arrange the door-to-door service as well.
A: We have special and detailed warranty policy.
A: Yes.
A: TT Bank Transfer is preferred.
A: 1 to 2 months usually.
A: Yes, but only LC at sight.
A: We have both local and online technical after-salves service provided.
Depending on strong technical capability and rich experience, ZONGDA provides the EPC service to the domestic and international clients and has abundant EPC project experience in China.
