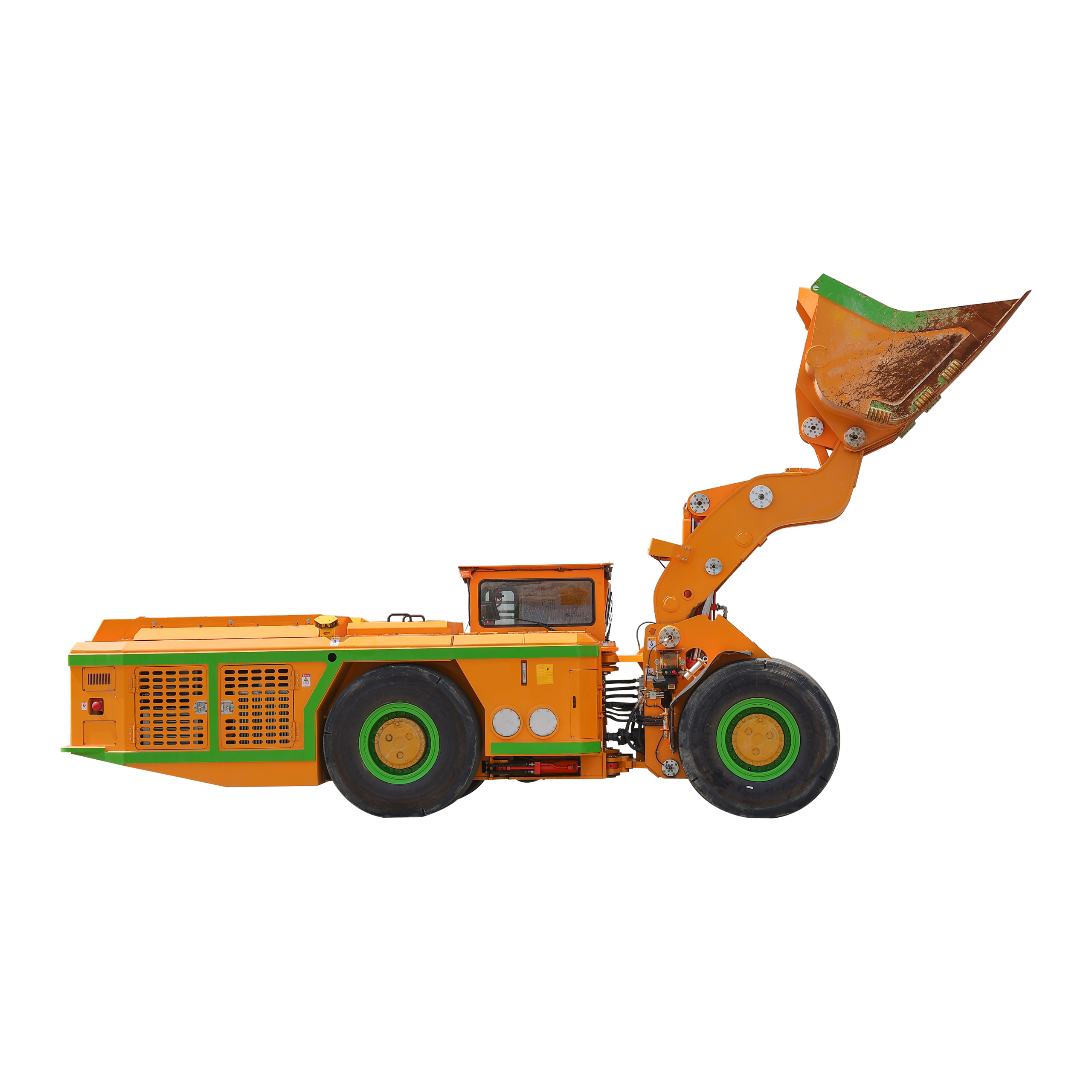

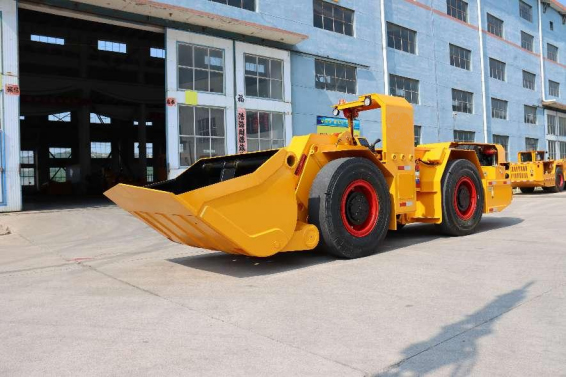

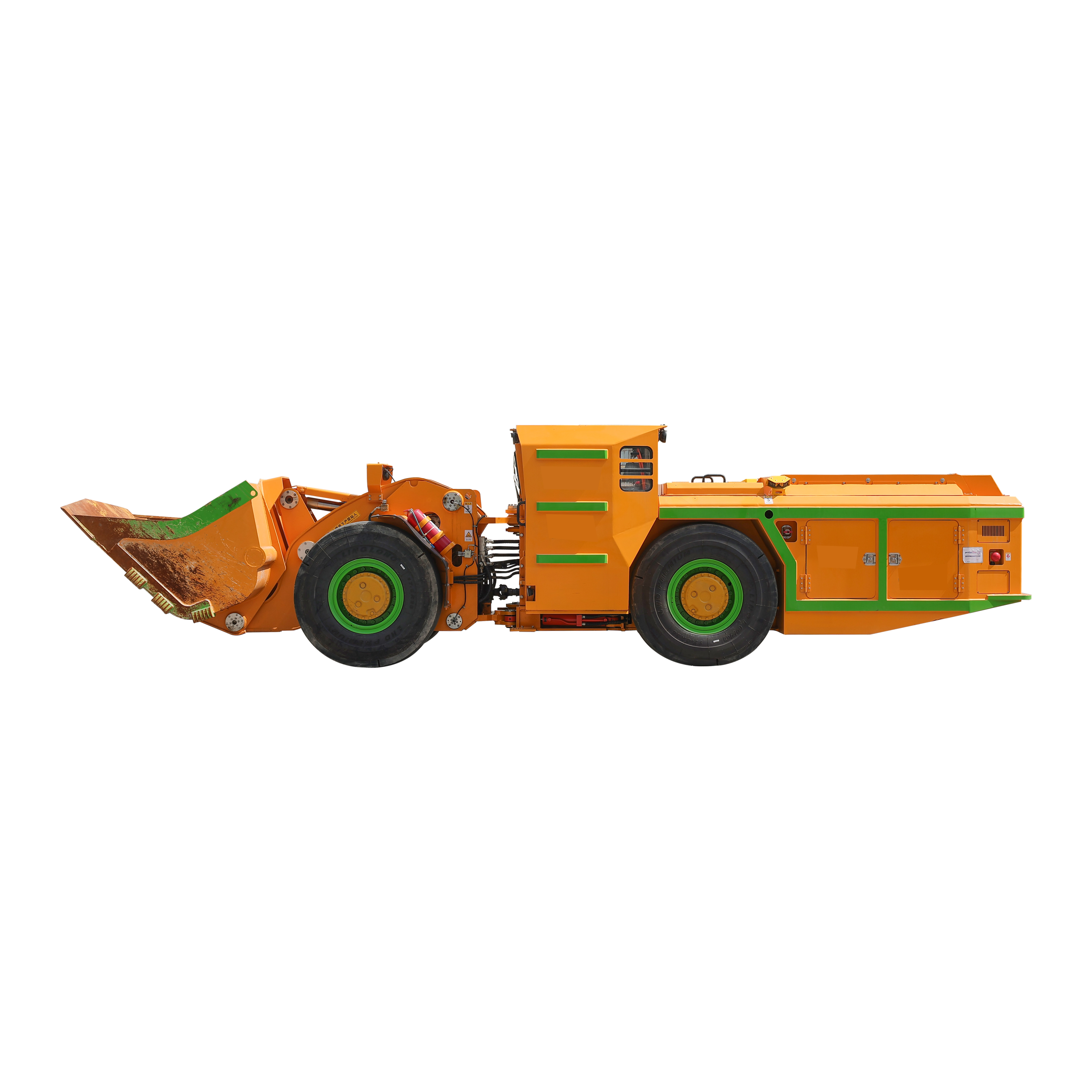

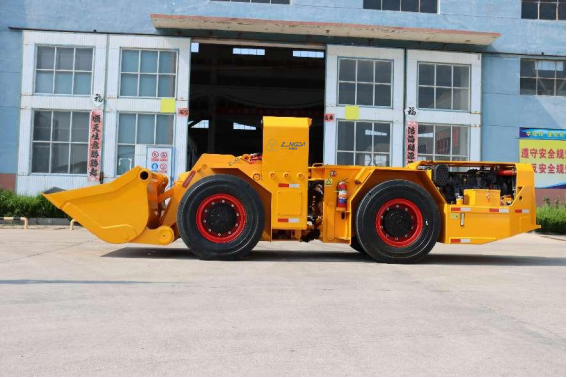

The ZDL204DD underground loader is designed to work with mining trucks in underground excavation and mining operations. Its 2 m³ bucket loads ore and other materials efficiently, supporting a practical load-haul-dump workflow for trackless mining.
The ZDL204DD underground loader is designed to work with mining trucks in underground excavation and mining operations. Its 2 m³ bucket loads ore and other materials efficiently, supporting a practical load-haul-dump workflow for trackless mining.
The ZDL204DD combines a 4,000 kg rated load, 2 m³ SAE bucket, and articulated underground-loader layout for loading broken ore and other materials. It is intended to feed underground trucks and support efficient trackless mining cycles.
Sized for underground loading work with a 2.5 m × 2.5 m minimum tunnel section, a central articulated frame, and a minimum outside turning radius of 5.3 m.
The 4,000 kg rated load and 2 m³ SAE bucket support ore and waste-rock loading into underground haul trucks.
The DEUTZ F6L914 engine, DANA power-shift transmission and C272 torque converter provide a proven diesel powertrain for underground haulage and loading cycles.
Wet multi-disc service braking, spring-applied hydraulic-release parking braking, and accessible hydraulic components support routine inspection and controlled maintenance.
| System | ZDL204DD configuration |
| Engine | DEUTZ F6L914, imported from Germany; 84 kW at 2300 rpm; detailed sheet states air-cooled diesel engine |
| Torque converter | C272, USA DANA |
| Transmission | RT32000, USA DANA; power shift |
| Drive axle and tires | Xuzhou Axle WJ2DN-F/R; rigid planetary transmission axle with NO-SPIN anti-skid differentials; mining cutting-resistant pneumatic tires |
| Brake system | Wet multi-disc working brake; spring-applied hydraulic-release parking brake; MICO charging and brake valves |
| Steering and frame | Central articulated hydraulic power steering with a single steering cylinder; rear axle swings around the frame center |
| Hydraulic system | USA PARKER multi-way valve and European-brand PERMCO pump; hydraulic oil tank 160 L |
Core dimensions, capacities, operating performance, and powertrain data for the ZDL204DD are listed below.
| Parameter | ZDL204DD value |
| Rated load | 4,000 kg |
| Bucket capacity (SAE stacking) | 2 m³ |
| Overall length / width / height | 7,230 / 1,750 / 2,100 mm (height includes cab top) |
| Maximum lifting height | 4,075 mm |
| Maximum unloading height | 1,790 mm |
| Unloading angle | 40° |
| Wheelbase | 2,580 mm |
| Minimum ground clearance | ≥240 mm |
| Departure angle | 14° |
| Operating weight | 13,100 kg |
| Full-load weight | 17,100 kg |
| Forward / reverse travel speed | 0–25 km/h |
| Travel speed on a 14° grade | 3.4 km/h |
| Gradeability | 14° maximum |
| Maximum traction force | 110 kN |
| Maximum scraping / shovel force (SAE) | 90 kN |
| Fuel tank | 130 L |
| Hydraulic oil tank | 160 L |
| Steering | Central articulated hydraulic power steering |
| Minimum turning radius — inside | 2,860 ± 200 mm |
| Minimum turning radius — outside | 5,300 ± 200 mm |
| Engine or power unit | DEUTZ F6L914 diesel engine, imported from Germany |
| Rated power and rated speed | 84 kW / 2,300 rpm |
| Minimum tunnel section | 2.5 m (height) × 2.5 m (width) and above |
Before entering the mine, operators must wear a safety helmet, carry a self-rescue device, and use a mining lamp. Inspect the loader regularly and correct hazards promptly. Never maintain the machine while it is running; relieve hydraulic pressure before repairs. Before welding or cutting, confirm that no flammable or explosive material is present, and avoid contact with the hot exhaust pipe.
Application conditions: firm roof; outside turning radius ≥5.3 m; road slope ≤14°; adequate ventilation and drainage. Ambient temperature -5°C to 40°C, relative humidity at 25°C ≤85%, and altitude ≤1,000 m; power derating is required above 1,000 m. Fuel sulfur content must not exceed 0.2%. Do not use the loader where flammable or explosive gases, gas, or coal dust are present.
For a quotation, send the tunnel section, material type, haul distance, ramp profile, destination country, and required delivery schedule.
Add a verified project case here before publication. Recommended fields are project type, customer requirement, selected configuration, support provided, and a short description of the result. Do not publish a customer name, mine location, production result, or performance improvement without written approval.
What is the ZDL204DD underground loader used for?
It loads ore and other materials in underground excavation and mining operations, typically working with underground mining trucks in a trackless mining workflow.
How do I choose the bucket for this underground loader?
Start with material density, fragmentation, bucket fill target, loading height, and the receiving truck or hopper. Zongda Mining should confirm the bucket and breakout requirements against the selected configuration.
Can the ZDL204DD work in a narrow tunnel?
It is specified for tunnel sections of at least 2.5 m × 2.5 m, with a minimum outside turning radius of 5.3 m. Confirm the complete clearance and turning study before ordering.
What information is needed for a quotation?
Send the mine application, tunnel size, material type, desired capacity, ramp and haul conditions, power and ventilation limits, destination country, and delivery schedule.
Can you provide spare parts and technical support?
Ask for the model-specific spare-parts list, recommended consumables, service documentation, commissioning scope, and available after-sales support for your destination.
Is this model available with different configurations?
Configuration availability must be confirmed for the order. Discuss the bucket, cab or canopy, power unit, braking, tires, lighting, fire-suppression, and other site requirements before quotation.
