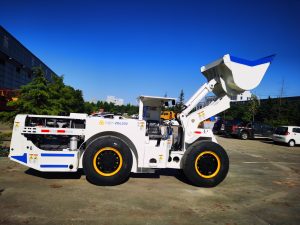

The ZDL215C is a 1.5t compact underground loader designed for narrow mine roadways, small underground mines, and light material loading tasks. With a 0.75m³ bucket, 1300mm body width, and 7.15t operating weight, it is suitable for working areas where larger underground LHD machines are difficult to operate.
This small underground LHD loader can be used for ore loading, waste rock handling, roadway cleaning, and short-distance material transport in non-coal underground mining projects.
The ZDL215C is a 1.5t compact underground loader designed for narrow mine roadways, small underground mines, and light material loading tasks. With a 0.75m³ bucket, 1300mm body width, and 7.15t operating weight, it is suitable for working areas where larger underground LHD machines are difficult to operate.
This small underground LHD loader can be used for ore loading, waste rock handling, roadway cleaning, and short-distance material transport in non-coal underground mining projects.
As a practical LHD machine in mining, the ZDL215C targets auxiliary tasks rather than heavy-duty production. It offers a highly maneuverable alternative when a standard underground mining loader is simply too large for the site. If your project requires a compact underground wheel loader to support roadway cleaning or localized loading, this 7.15t unit provides the right fit.
For buyers looking for a small underground LHD loader or a compact underground wheel loader, the ZDL215C can support daily underground loading tasks where larger equipment may not fit.
Compact 1.5T Loading Capacity
The ZDL215C underground loader is suitable for small mine loading, auxiliary transport, and narrow roadway work.
0.75m³ Bucket
The 0.75m³ bucket is used for light ore, waste rock, and loose material handling in underground mines.
Narrow 1300mm Body Width
The compact body helps the machine move through limited underground spaces and narrow mine roadways.
Cummins QSF 3.8 Engine
The loader uses a Cummins QSF 3.8 engine with 74 kW power and Euro Stage 3 emission standard.
Flexible Turning
With a 38° steering angle and compact turning radius, this underground mining loader is easier to operate in confined mine areas.
| Елемент | Детайли |
| Име на продукта | ZDL215C Underground Loader |
| Тип продукт | Compact Underground Loader / Small Underground LHD Loader |
| Капацитет на кофата | 0.75m³ |
| Номинална товароносимост | 1.5t |
| Maximum Shovel Force | 48 kN |
| Максимална сила на теглене | 58 kN |
| Maximum Unloading Height | 1180 mm |
| Способност за изкачване | ≥16° |
| Outside Turning Radius | 4260 mm |
| Inside Turning Radius | 2150 mm |
| Ъгъл на завиване | 38° |
| Travel Speed | 0–8 km/h |
| двигател | Cummins QSF 3.8 |
| Engine Power | 74 kW |
| Стандарт за емисии | Euro Stage 3 |
| Общи размери | 5950 × 1300 × 2000 mm |
| Работно тегло | 7.15t |
This compact underground loader is a practical choice when the project needs a smaller LHD machine instead of a large-capacity underground mining loader.
Before each shift, operators should check the braking system, steering function, tires, hydraulic system, lights, and visible leakage. Maintenance should not be carried out while the machine is running.
Hydraulic pressure should be released before repair. Welding or cutting work should only begin after flammable materials have been cleared from the work area.
ZONGDA supports project-based communication for compact underground loader procurement. Buyers can discuss roadway size, bucket capacity, engine requirements, spare parts, shipping arrangement, and after-sales support.
For an underground loader quote, please provide tunnel size, working slope, ore type, required capacity, destination country, and any special configuration needs.
Q1: What is the ZDL215C underground loader used for?
It is used for light ore loading, waste rock handling, roadway cleaning, and short-distance material transport in small underground mines.
В2: Is this small underground LHD loader suitable for narrow roadways?
Yes. With a 1300mm body width and compact turning radius, it is suitable for narrow underground mine roadways.
В3: What engine does the ZDL215C use?
It uses a Cummins QSF 3.8 engine with 74 kW power and Euro Stage 3 emission standard.
В4: How can I request an underground loader quote?
Please provide tunnel size, slope condition, ore type, required capacity, destination country, and any special configuration requirements.
