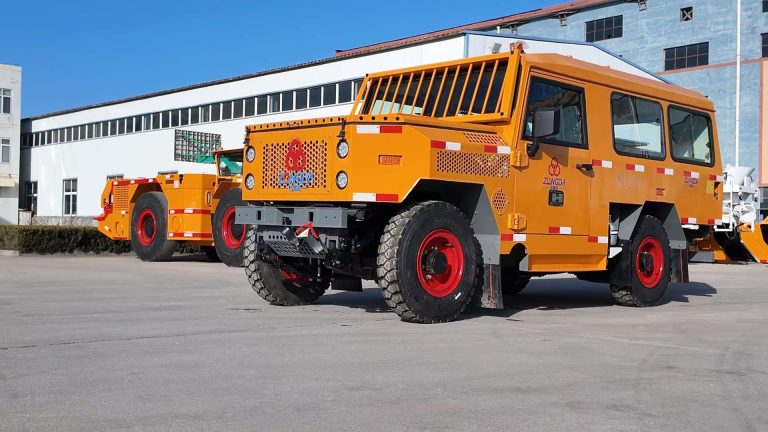

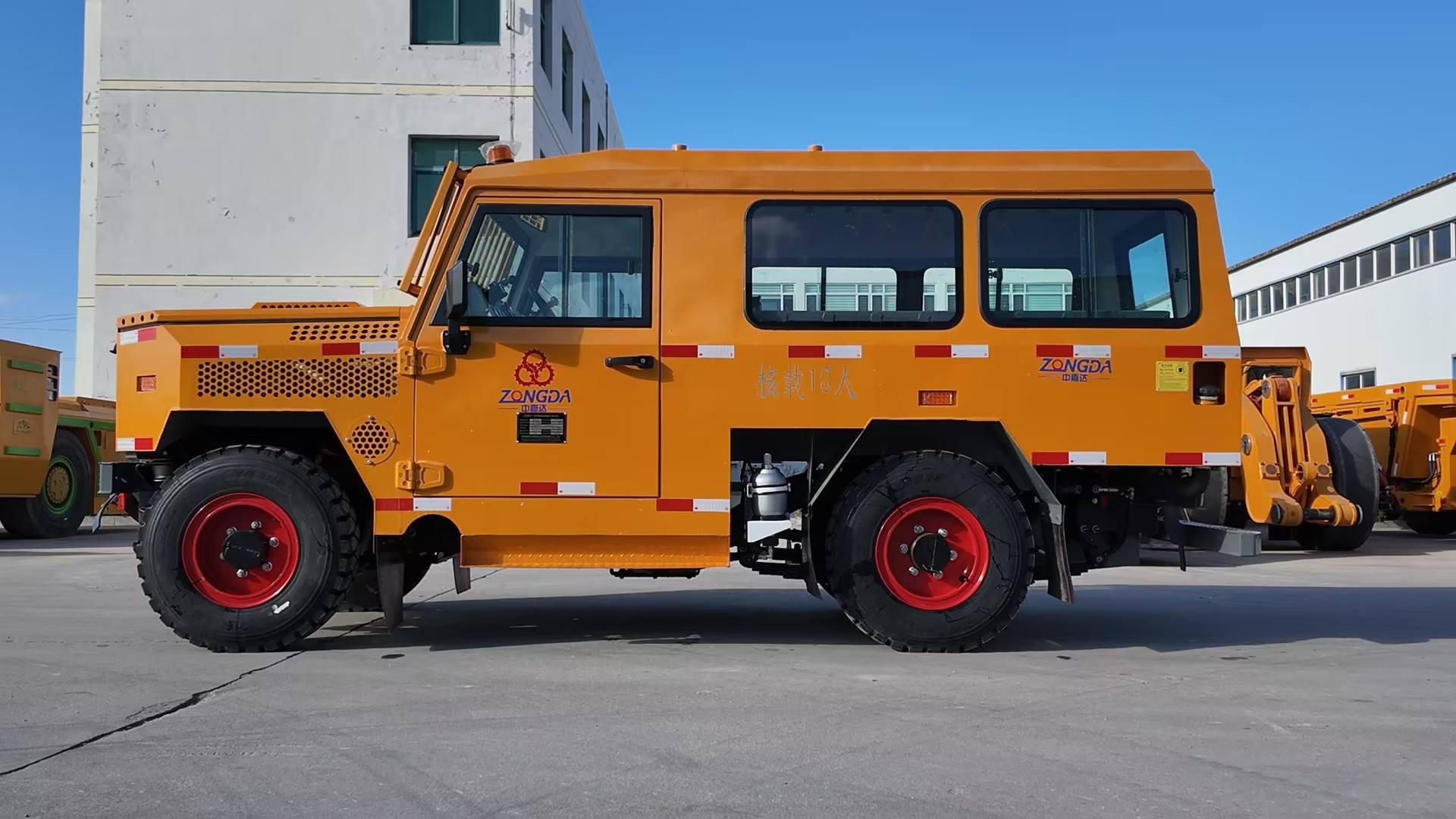

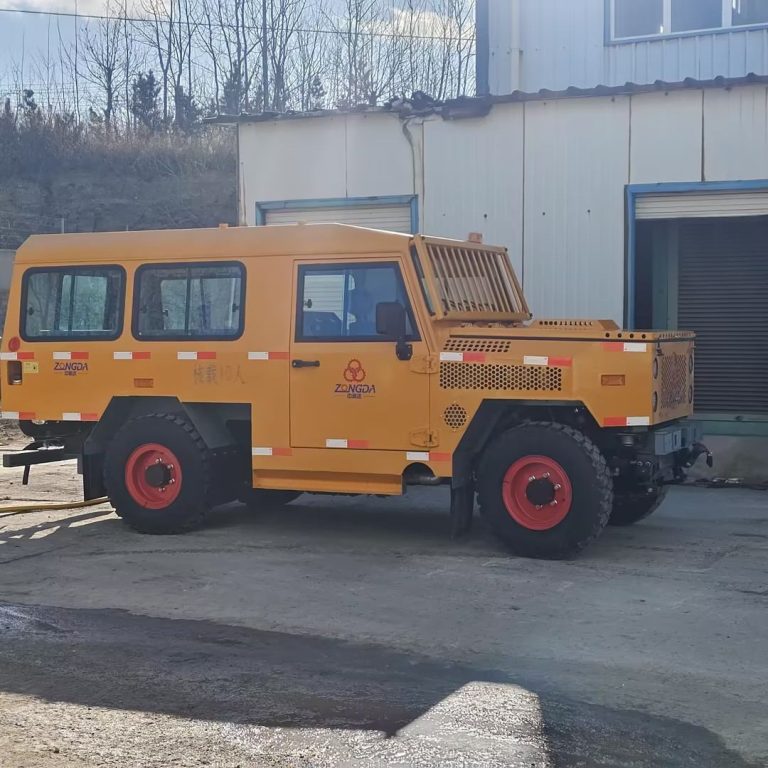

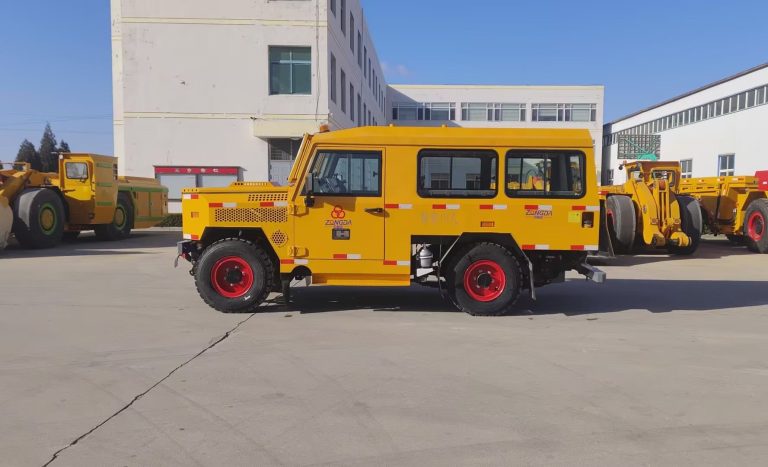

This underground mine personnel carrier can be used together with loaders, haul trucks, and service vehicles in daily mine operations. For projects that need a dedicated crew transport unit, the ZDRU-10 provides a safer alternative to temporary transport methods. Its design focuses on passenger capacity, steering control, and braking performance for underground roadway use.

Основни характеристики

• 10-Worker Capacity:Fits a standard mining crew for quick shift transfers.
• 4WD Traction:Four-wheel drive handles rough, uneven mine floors easily.
• Tight Steering:The front axle hydraulic steering achieves ±30° turns in narrow roadways.
• Enclosed Cab:Protects operators from harsh underground environments.
• Reliable Brakes:Features hydraulic wet multi-disc driving brakes plus rear axle spring parking brakes.
• Rear Access:A rear-door entry allows workers to board and exit quickly.

Основна конфигурация

• Двигател:81 kW / 2200 rpm Cummins water-cooled diesel (low-pollution).
• Предаване:ZL15 + YJ280 hydraulic mechanical system.
• Drive Axle:DANA 211 (front) and DANA 111 (rear).
• Brakes:Wet multi-disc driving brake; rear axle spring parking brake.
• Управление:Front wheel hydraulic steering, ±30° angle.
• Cab:Fully closed structure.

Спецификации на продукта

Brake, Steering & Capacities

Условия на труд

• Размер на тунела:At least 5 m high by 3 m wide.
• Наклон на пътя:≤ 14°.
• Околна среда:-5°C to 40°C; maximum 85% relative humidity (at 25°C).
• Необходимо гориво:Diesel with ≤ 0.2% sulfur content.
• Ограничения на сайта:Не използвайте във въглищни мини или зони с експлозивен газ и прах.

Приложения

This underground personnel carrier is mainly used for mine crew transportation in underground roadways. It is suitable for non-coal mines, underground metal mines, medium-section tunnels, mine auxiliary transport, maintenance crew transfer, and shift-change transport.

For mining contractors and equipment buyers, the ZDRU-10 can be used as a practical mine personnel carrier to support underground loaders, mining trucks, service vehicles, and other mining equipment in daily operation.

Персонализиране и поддръжка на доставката

ZONGDA manufactures customizable underground mining personnel carriers for global buyers. Let us know your specific roadway dimensions, slopes, and passenger needs. We can adjust engines, lighting, or spare parts packages. Send us your tunnel specs and destination country for an accurate export packing and shipping quote.

Бележки за безопасност и поддръжка

Before each shift, the ZDRU-10 should be checked for basic mechanical condition, braking response, steering function, tires, lights, and visible leakage.

Workers entering underground areas should wear helmets, carry self-rescuers, and use proper mine lighting. Maintenance work should not be carried out while the engine is running. Hydraulic pressure must be released before repair, and welding or cutting work should only be done after flammable materials have been cleared.

Operators should also avoid direct contact with the exhaust pipe after operation.

Често задавани въпроси

Q1: What is the ZDRU-10 underground personnel carrier used for?

Moving workers during shift changes and maintenance runs in non-coal mines.

Q2: How many passengers fit inside?

It safely holds a 10-person crew.

Q3: What are the minimum tunnel requirements?

We recommend tunnels at least 5 meters high and 3 meters wide.

Q4: Which engine powers this mining personnel carriers?

An 81 kW Cummins low-pollution, water-cooled diesel engine.

Q5: How does the braking system work?

It pairs hydraulic wet multi-disc driving brakes with spring-applied parking brakes on the rear axle.

Q6: Can we use this in a coal mine?

No. This underground mining personnel carrier is strictly prohibited in environments with explosive coal dust or gas.
