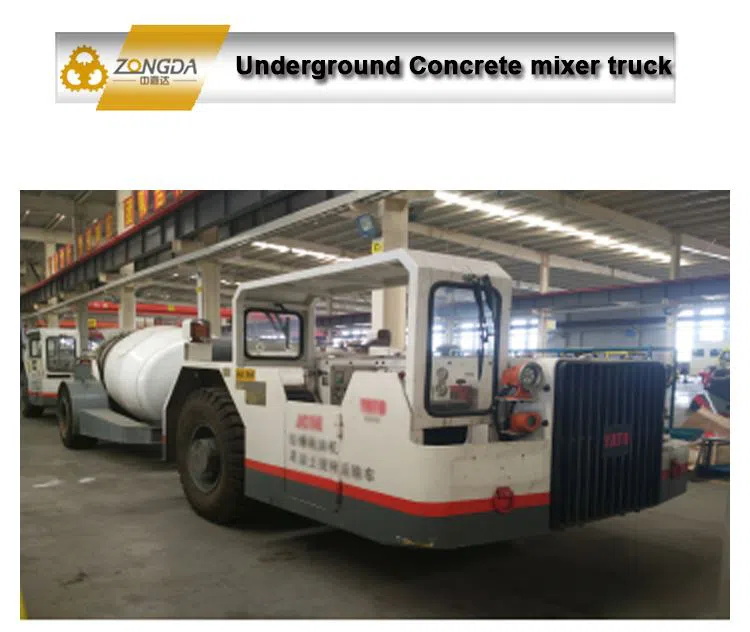

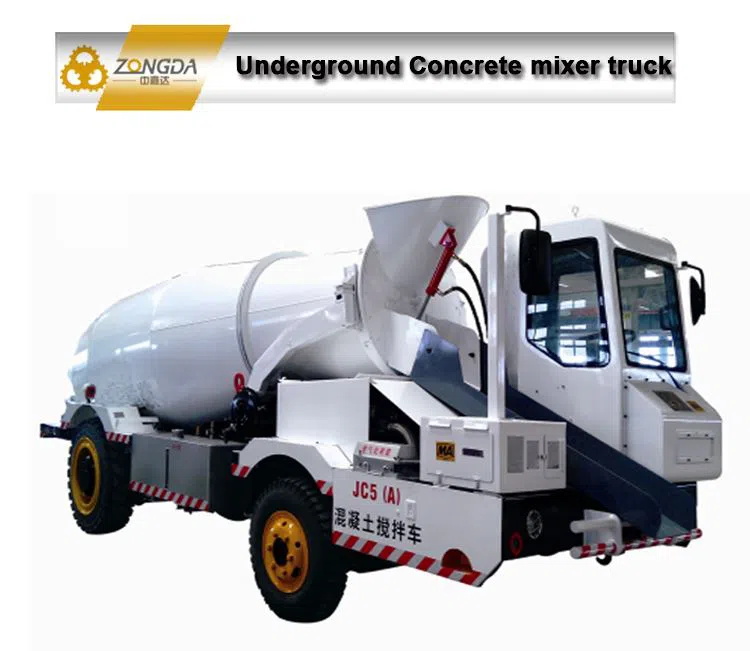

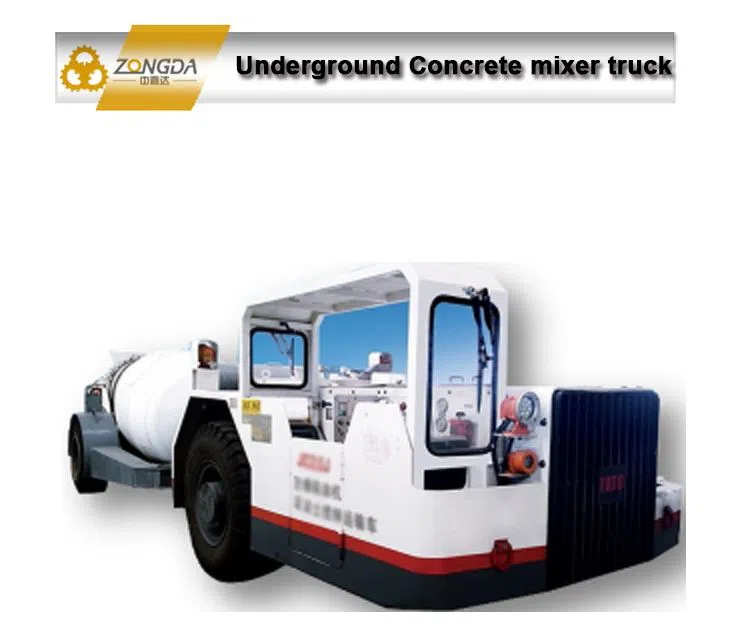

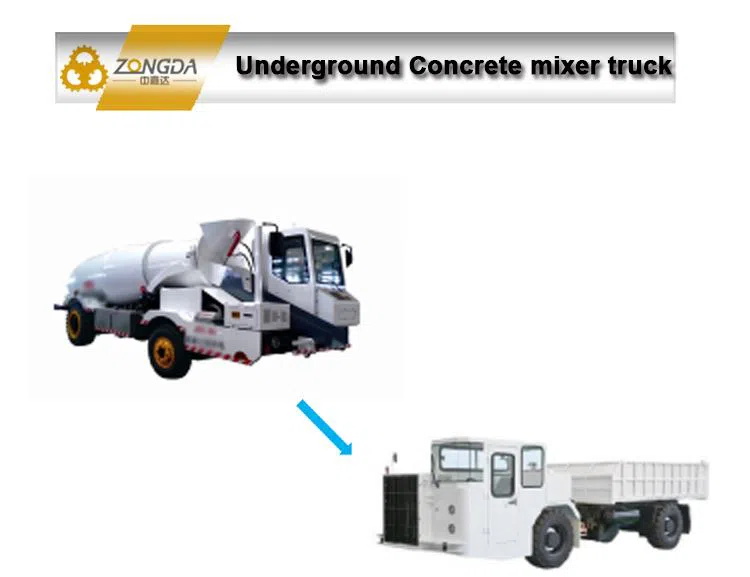

The JC4.5 is a purpose-built underground concrete mixer truck designed for mine roadway hardening and tunnel construction. It keeps material in continuous motion to prevent layering and splashing during transit. Operating as an articulated concrete transit mixer, it delivers a 4.5m³ effective volume, 4×4 driving mode, and an 1800 mm unloading height. This setup supports concrete delivery in confined underground infrastructure projects.
The JC4.5 is a purpose-built underground concrete mixer truck designed for mine roadway hardening and tunnel construction. It keeps material in continuous motion to prevent layering and splashing during transit. Operating as an articulated concrete transit mixer, it delivers a 4.5m³ effective volume, 4×4 driving mode, and an 1800 mm unloading height. This setup supports concrete delivery in confined underground infrastructure projects.
Transporting concrete with open tipper trucks often causes material layering and splashing over uneven mine floors. Underground concrete transmixer solves this by rotating the material continuously from batching plant to work site. The JC4.5 replaces manual handling with a controlled, mechanical discharge specifically engineered for roadway surface hardening and tunnel floor construction.
4.5m³ Effective Mixing Volume
The underground concrete transit mixer has a 4.5m³ effective volume, making it suitable for concrete delivery in mine roadways and tunnel construction sites.
Continuous Mixing During Transport
The mixing drum keeps concrete moving during underground transportation, helping reduce layering and early setting during longer transport routes.
4×4 Underground Driving Mode
The 4×4 driving mode supports movement in underground roadways where traction, slope condition, and confined space operation are important.
Controlled Concrete Discharge
The unloading speed is stepless adjustable from 0 to 0.8m³/min, helping operators control concrete discharge during roadway hardening work.
Full Hydraulic Four-Wheel Steering
The full hydraulic four-wheel steering system helps the vehicle turn in underground mine roadways with limited space.
Wet Brake System
The wet brake system supports safer braking performance in underground construction and mining environments.
Mixer Body
The vehicle uses a 4.5m³ mixing drum with a maximum drum speed of 18 r/min.
Drive Mode
The machine adopts 4×4 driving mode for underground roadway transport.
Engine System
The diesel engine system uses a 6CTAA8.3-C215 engine with rated power of 160 kW / 2200 rpm.
Transmission
The gearbox is a DANA R32421-679 power shift gearbox.
Drive System
The drive system adopts hydromechanical transmission and DANA axles.
Brake System
The vehicle uses wet brakes, with hydraulic working braking and spring release.
Steering System
Full hydraulic four-wheel steering supports turning in underground roadway conditions.
Cab
The single metal cab is equipped with operating controls, display instruments, and an adjustable spring seat.
| Item | Details |
| Product Type | Underground Concrete Mixer Truck / Concrete Transit Mixer |
| Model | JC4.5 |
| Effective Volume | 4.5m³ |
| Curb Weight | 13000 kg |
| Rated Load Mass | 11000 kg |
| Overall Dimensions | 6750 × 2360 × 2550 mm |
| Maximum Mixing Drum Speed | 18 r/min |
| Mixing Tank Speed Gear | Third gear: forward, middle, reverse |
| Unloading Speed | ≥0–0.8m³/min, stepless adjustable |
| Emergency Tank Transfer Mode | Emergency pipeline, manual emergency tank |
| Vehicle Cleaning | With car washing equipment |
| Driving Mode | 4×4 |
| Tank Carrier Lubrication | Sealing protection, molybdenum disulfide grease |
| Climbing Capacity | Longitudinal / transverse: 14° / 7° |
| Wheelbase | 3300 mm |
| Tread | 2045 mm |
| Minimum Passing Radius | Inside 2750 mm; outside 5300 mm |
| Maximum Traction | 140 kN |
| Suspension System | Rigid swing beam |
| Unloading Height | 1800 mm |
| Minimum Ground Clearance | 300 mm |
| Item | Details |
| Cab Type | Single metal cab |
| Control Device | Start, steering, acceleration, braking, parking, shifting and other longitudinal controls |
| Steering Wheel Control Force | ≤50 N |
| Foot Pedal Control Force | ≤350 N |
| Control Handle Force | ≤120 N |
| Display Instruments | Oil pressure gauge, voltmeter, water temperature gauge, engine tachometer, speedometer, fuel gauge, brake pressure gauge |
| Seat Form | Spring seat, adjustable front and rear |
| Item | Details |
| Engine Type | 6CTAA8.3-C215 |
| Cylinder Arrangement | Inline |
| Rated Power / Speed | 160 kW / 2200 rpm |
| Maximum Torque | 980 Nm / 1500 r/min |
| Rotation Direction | Anti-clockwise, facing flywheel |
| Minimum Stable Operating Speed | 800 ± 50 r/min |
| Fuel Supply Mode | Direct injection |
| Displacement | 8.3 L |
| Average Fuel Consumption Rate | 212 g/kWh |
| Bore / Stroke | 114 / 135 mm |
| Compression Ratio | 17.3:1 |
| Intake Mode | Turbocharging, intake intercooling |
| Exhaust Mode | Tail gas purification and silencing |
| Fuel Specification | 0 to -35 diesel oil |
| Transmission Model | R32421-679 |
| Gearbox Manufacturer | DANA |
| Gearbox Type | Power shift gearbox |
| Item | Details |
| Transmission Mode | Hydromechanical transmission |
| Axle Model, Front / Rear | 10052406 |
| Axle Speed Ratio, Front / Rear | 18.6 / 18.6 |
| Axle Manufacturer, Front / Rear | DANA |
| Tire Size and Model | 12.00-20 |
| Tire Type | Pneumatic tire |
| Brake Type | Wet brake |
| Brake Pump Displacement / Pressure | 30 ml/r / 20 MPa |
| Working Braking | Hydraulic brake / spring release |
| Emergency / Parking Brake | Spring brake / hydraulic release |
| Braking Distance | < 8 m at 20 km/h on dry hard road |
| Steering Mode | Full hydraulic four-wheel steering |
| Steering Pump Displacement / Pressure | 30 ml/r / 20 MPa |
| Item | Details |
| Hydraulic Pump Model | 90-R-055-HF-1-AB-80-S-3-C6-D-03-GBA-35-35-24 |
| Pump Form | Variable displacement piston pump |
| Pressure | 37.5 MPa |
| Displacement | 55 ml/r |
| Hydraulic Oil Tank Volume | 120 L |
| Filtering Mode | Suction filtration, return filtration |
| Filtration Accuracy | 100 / 10 μm |
| Filter Cartridge | TF-250×100F / RF-110×30 |
| Item | Details |
| Front Lighting | High and low beam lamp with rigid protective lamp cover |
| Brake Indicator and Turn Signal | Yes |
| Reversing Lamp | Left and right |
| Horn Type | Electric horn |
| Horn Operation | Manual button on steering wheel |
| Horn Sound Pressure | ≥75 dB(A) at 40 m |
| Reversing Sound Warning | Yes |
This underground concrete mixer truck is suitable for concrete transport in underground mines, tunnel construction sites, coal mine roadways, mine infrastructure projects, and underground roadway hardening work.
Typical applications include:
In underground construction, open transport methods may lead to concrete splashing, layering, low transport efficiency, and more manual handling. These problems become more obvious when the transport distance is long or the roadway condition is uneven.
An underground concrete transit mixer keeps the concrete rotating during movement. This helps reduce layering, supports controlled discharge, and makes concrete delivery more suitable for roadway hardening and mine construction work.
ZONGDA supports project-based communication for underground concrete mixer truck procurement. Buyers can confirm effective volume, roadway size, unloading height, driving mode, mine environment, concrete transport distance, spare parts plan, shipping arrangement, and after-sales support.
For a quote, please provide mine type, roadway size, concrete transport distance, required mixing volume, unloading conditions, destination country, and any special configuration requirements.
Q1: What is an underground concrete mixer truck used for?
It is used for concrete transport in underground mines, tunnel projects, and roadway hardening work. The drum keeps concrete moving during transport to reduce layering.
Q2: What is the effective volume of this articulated concrete transit mixer?
The JC4.5 underground concrete transit mixer has a 4.5m³ effective volume.
Q3: Is this concrete transit mixer suitable for roadway hardening?
Yes. It is suitable for underground roadway surface hardening, tunnel floor concrete delivery, and mine infrastructure construction.
Q4: How does it reduce concrete layering during transport?
The mixing drum keeps rotating during underground movement, so concrete remains in a mixing state before discharge.
Q5: What drive mode does this underground concrete transmixer use?
It uses 4×4 driving mode and full hydraulic four-wheel steering for underground roadway transport.
